(Part Number: CDX08643161) – Light Duty Grip – Standard 3.00-3.49″ – Cable Pulling – Condux International

Description

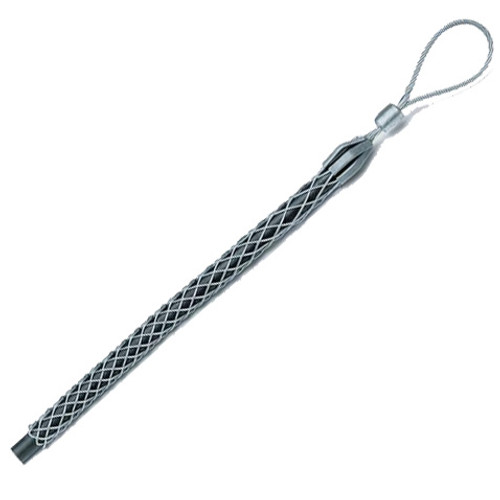

Light Duty Pulling Grips are made of galvanized steel in a single weave construction. They feature a flexible eye for easy attachment to a pulling line. Light duty grips are used in general underground electrical construction where pulling tensions are low. They are easy tools to use in wiring industrial plants and commercial buildings.

CABLE DIAMETER RANGE: 3.00-3.49″

APPROXIMATE BREAKING STRENGTH: 14700LBS

*ORDER CAREFULLY! This item is made-to-order and is not returnable.

Cable Diameter Range [in]:
3.00 to 3.49

Cable Diameter Range [mm]:
76 to 89

Extended Part Number:
033-03-019

Eye Length [in]:
10

Eye Length [mm]:
254

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08643161

Item Name:
Light Duty Grip – Standard 3.00-3.49

Mesh Length at Nominal Diameter [mm]:
762

Package Type:
Each

Shipping Method:
Parcel

Type of Handling Units:
BAG – Bag

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
2.220000

Weight [lb]:
2
