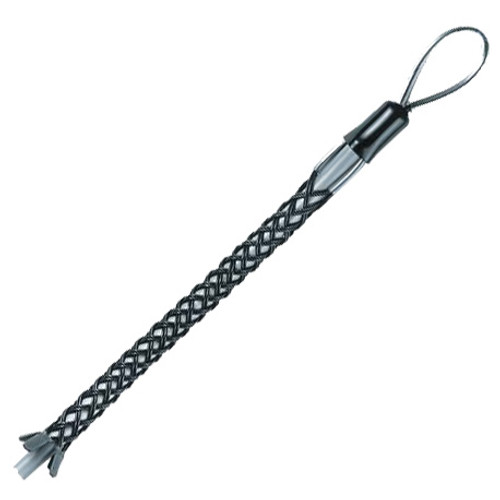

(Part Number: CDX08642437) – Non-Conductive Grip 1.00-1.24″ – Cable Pulling – Pulling Grips – Overhead Pulling Grips – Non-Conductive Grip – Condux International

Description

Non-conductive Pulling Grips are made of a high strength, non-conductive aramid fiber, and are available for pulling single cable or cable bundles. Their braided double weave design adds strength and positive holding power. They were developed for use by utilities for pulling overhead distribution lines in close proximity to energized lines and hardware.

For 1.00-1.24″ cable diameter.

Cable Diameter Range [in]:
1.00 to 1.24

Cable Diameter Range [mm]:
25 to 31

Color:
Blue

Extended Part Number:
036-28-004

Eye Cable Diameter [in]:
0.63

Eye Cable Diameter [mm]:
16

Eye Length [in]:
6.5

Eye Length [mm]:
165

Height [in]:
10

Length [in]:
10

Width [in]:
10

Item #:
08642437

Item Name:
Non-Conductive Grip 1.00-1.24

Mesh Length at Nominal Diameter [mm]:
914

Package Type:
Each

Shipping Method:
Parcel

Type of Handling Units:
BAG – Bag

Units Per Package:
1

Weight [lb]:
0.100000

Weight [lb]:
1
