$615.92

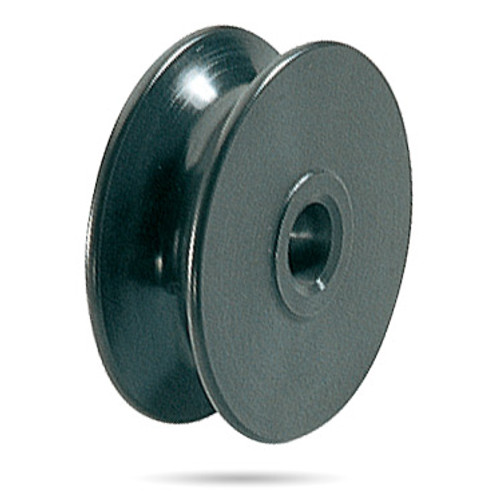

Nylatron Replacement Sheave Assembly for the 6″ Cable Feeding Sheave, 10,000 lb. Hooked Hanger Sheave, 3 Sheave Cable Guide, Quadrant Block and the Corner Cable Guide.
The replacement sheave is for maximim cable OD of 6in (152mm). Sheaves are available in standard alloy or Nylatron for less abrasion with cable jackets.
Max 10,000lb (44,480N) tension working load.
Height [in]:
8
Length [in]:
13
Width [in]:
13
Item #:
08087812
Item Name:
6 x 11 Replacement Sheave – Nylatron
Maximum Cable Diameter [in]:
6
Maximum Cable Diameter [mm]:
152
Maximum Width [in]:
6.75
Maximum Width [mm]:
171
Minimum Bending Radius [in]:
3.12
Minimum Bending Radius [mm]:
79
Outside Diameter [in]:
11
Outside Diameter [mm]:
279
Package Type:
Each
Shaft [in]:
1.25
Shaft [mm]:
32
Shipping Height [in]:
8
Shipping Length [in]:
13
Shipping Method:
Parcel
Shipping Width [in]:
13
Similar to:
DCD 32900-611P
Size [in]:
6 x 11
Tension Working Load [lb]:
10000
Tension Working Load [Newton]:
44480
Unit of Measure:
EA.
Units Per Package:
1
Variation:
Nylatron
Weight [lb]:
20.380000
