$1,129.34

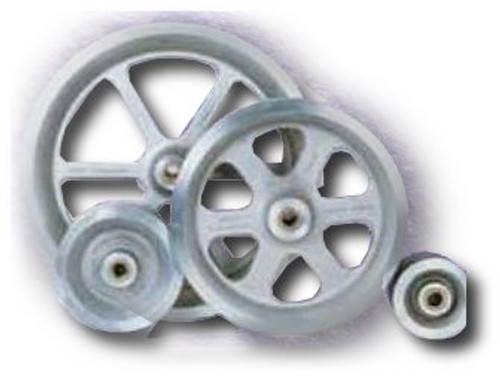

Replacement Sheave Assembly for the 4″ Cable Feeding Sheave, Quadrant Block and the Corner Cable Guide.
The replacement sheave is for maximim cable OD of 4.25in (107mm). Sheaves are available in standard alloy or Nylatron for less abrasion with cable jackets.
Max 10,000lb (44,480N) tension working load.
Height [in]:
5
Length [in]:
23
Width [in]:
23
Item #:
08065411
Item Name:
4 x 20 Replacement Sheave – Alloy
Maximum Cable Diameter [in]:
4.25
Maximum Cable Diameter [mm]:
107
Maximum Width [in]:
4.75
Maximum Width [mm]:
120
Minimum Bending Radius [in]:
8.5
Minimum Bending Radius [mm]:
215
Outside Diameter [in]:
20
Outside Diameter [mm]:
508
Package Type:
Each
Shaft [in]:
1.25
Shaft [mm]:
32
Shipping Height [in]:
5
Shipping Length [in]:
23
Shipping Method:
Parcel
Shipping Width [in]:
23
Similar to:
GMP 71735 DCD 32900-420
Size [in]:
4 x 20
Tension Working Load [lb]:
10000
Tension Working Load [Newton]:
44480
Unit of Measure:
EA.
Units Per Package:
1
Variation:
Alloy
Weight [lb]:
35.720000
