(Part Number: CDX08046712) – 4″ x 11″ Replacement Sheave – Nylatron – Cable Pulling – Condux International

Description

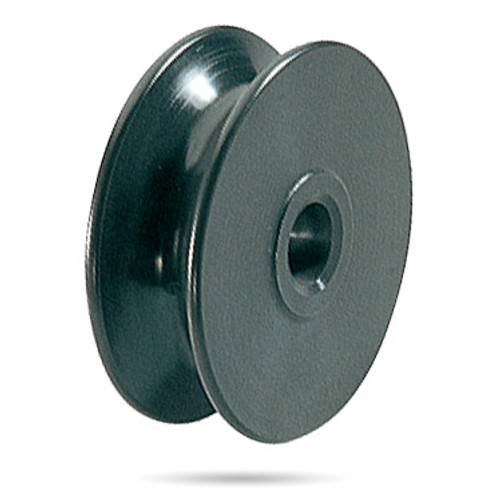

Nylatron Replacement Sheave Assembly for the 4″ Cable Feeding Sheave, Quadrant Block and the Corner Cable Guide.

The replacement sheave is for maximim cable OD of 4in (102mm). Sheaves are available in standard alloy or Nylatron for less abrasion with cable jackets.

Max 10,000lb (44,480N) tension working load.

Height [in]:
6

Length [in]:
13

Width [in]:
13

Item #:
08046712

Item Name:
4 x 11 Replacement Sheave – Nylatron

Maximum Cable Diameter [in]:
4

Maximum Cable Diameter [mm]:
102

Maximum Width [in]:
4.75

Maximum Width [mm]:
120

Minimum Bending Radius [in]:
3.75

Minimum Bending Radius [mm]:
95

Outside Diameter [in]:
11

Outside Diameter [mm]:
279

Package Type:
Each

Shaft [in]:
1.25

Shaft [mm]:
32

Shipping Height [in]:
6

Shipping Length [in]:
13

Shipping Method:
Parcel

Shipping Width [in]:
13

Similar to:
DCD 32900-411P

Size [in]:
4 x 11

Tension Working Load [lb]:
10000

Tension Working Load [Newton]:
44480

Unit of Measure:
EA.

Units Per Package:
1

Variation:
Nylatron

Weight [lb]:
16.090000
