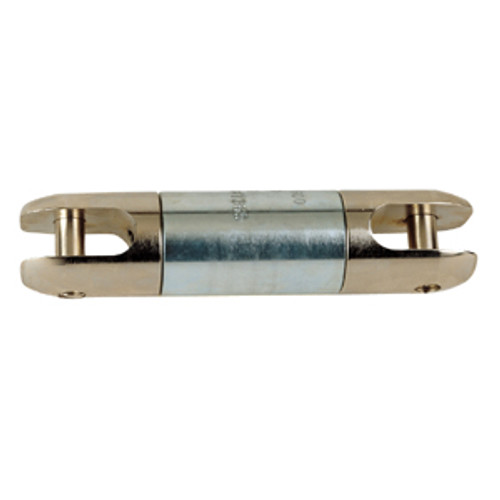

(Part Number: CDX08018800) – 7/8″ Breakaway Swivel 850 lbs Break Load – Cable Pulling – Swivels – Breakaway Swivels – Condux International

Description

Essential for fiber optic and coaxial cable pulling, these swivels have a break load ranging from 150 – 1,800 pounds (667 – 8,006 N) and are designed to separate at ?10% of their rated break load.? If the load rating is exceeded, the interior break pin fractures, the swivel separates, and the cable remains undamaged.? Break pin is easily replaceable.

Break Load [lb]:
850

Break Load [Newton]:
3781

Color:
Black/Yellow

Diameter [in]:
0.875

Diameter [mm]:
22

Entire Slot Depth [in]:
1.06

Entire Slot Depth [mm]:
27

Freight Class:
50

Height [in]:
10

Length [in]:
10

Packaging Type:
Boxes

Width [in]:
10

Item #:
08018800

Item Name:
7/8 Breakaway Swivel 850 lbs Break Load

Length [in]:
4.51

Length [mm]:
115

Package Type:
Each

Pin Center [in]:
.53

Pin Center [mm]:
13

Pin Diameter [in]:
.31

Pin Diameter [mm]:
8

Replacement Break Pin:
08018705″

Shipping Height [in]:
5

Shipping Length [in]:
10

Shipping Method:
Parcel

Shipping Width [in]:
5

Similar to:
Green lee 39298, DCD 00550-010

Slot Width [in]:
0.38

Slot Width [mm]:
10

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
0.750000

Weight [lb]:
0.75
