Category 6A Supra 10G-RD UTP – Proterial
Call for Price

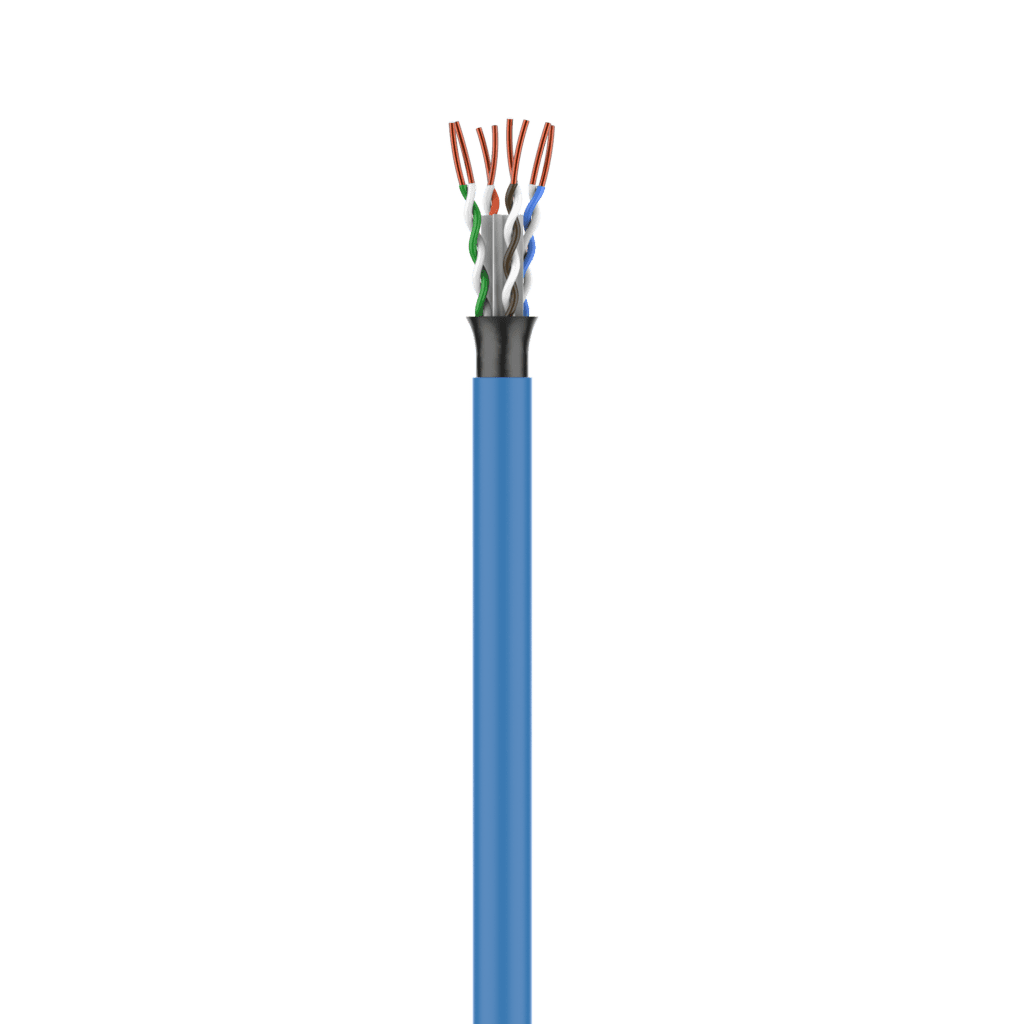

The Cat6A Supra 10G-RD from Proterial Cable America (PCA) delivers exceptional Category 6A performance with a significantly reduced outside diameter, allowing up to 26% more cable in the same space. Utilizing PCA’s advanced Noise Control Barrier™, the Supra 10G-RD supports 10 Gigabit Ethernet over distances up to 100 meters, meeting the TIA-568.2-D standard, and is capable of supporting PoE applications up to 100 watts.
Description
PRODUCT HIGHLIGHTS
- RoHS 3 compliant
- UL Verified ANSI/TIA-568.2-D
- Low Smoke Plenum construction
- Tested from 1 to 660 MHz
- Small O.D. allows more cables per conduit
- Noise Control Barrier (NCB™) technology allows for a reduced outside diameter and electrical performance that is superior to discontinuous shield designs
- UL Tested (LP) for maximum power support
PRODUCT DETAILS
| Part Number | 30263 |
| Manufacturing Location | This product is produced and manufactured in the USA |
| Cable Rating | Plenum |
| Star Filler | Plenum-rated fluoropolymer |
| Shield | Proterial Special Blocker Tape (MMAM Tape) |
| Jacket Material | Low Smoke PVC |
| Jacket Colors | Current – Black, Blue, Gray, Green, Orange, Red, Violet, White, and Yellow |
| Calculated Cable O.D. | 0.240″ (6.096 mm) |
| Cable Weight | 33.1 lbs (15.0 kg) |
| Applications | • HDBase-T A & B • 10 Gigabit Ethernet (IEEE 802.3an) • 5 Gigabit Ethernet (IEEE 802.3bz) • 2.5 Gigabit Ethernet (IEEE 802.3bz) • Gigabit Ethernet (IEEE 802.3ab) • 100 Mbps Ethernet (IEEE 802.3u) • 1000 Mbps ATM • 622 Mbps ATM • 15W PoE (IEEE 802.3af) • 30W PoE+ (IEEE 802.3at) • 60W PoE++ (IEEE 802.3bt Type 3) • 100W PoE++ (IEEE 802.3bt Type 4) |
| Storage Temperature | -4°F to 194°F (-20°C to 90°C) |
| Installation Temperature | 32°F to 140°F (0°C to 60°C) |
| Operation Temperature | -4°F to 194°F (-20°C to 90°C) |
| Conductor Type | Solid Copper 23 AWG |
| Number of Conductors | 8 |
| Packaging | Reels REELEX |
