Description

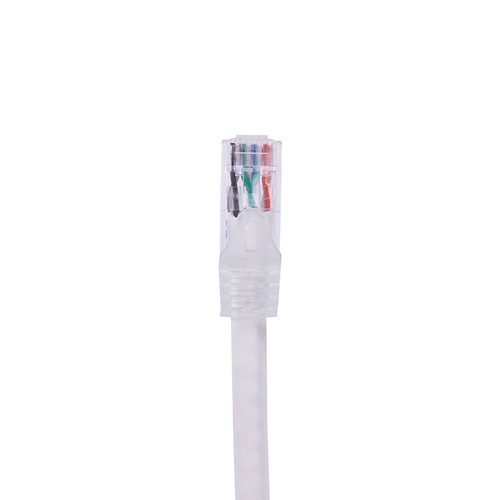

Vericom VGS6A Category 6A Patch Cables are designed to meet and exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class E electrical performance requirements for frequencies up to 500 MHz. The patch cables utilize 24 AWG stranded conductors in a four pair unshielded configuration for maximum durability. VGS6A Patch Cables are rated CM and meet applications up to 10 Gigabit Ethernet with RJ-45 modular plugs and clear boots.
Available in many lengths and colors to meet specific project requirements. To maximize system performance, combine with Vericom connectivity and bulk cable.
Features & Benefits
- 24 AWG cable design ensures 10 Gigabit performance up to 100 meter channel
- Staggered RJ-45 plug design with 50 microinches of gold plating for maximum system reliability.
- Snagless clear boot design protects the RJ-45 plug, eases MACs, and provides modern aesthetics.
- Stranded conductors with a 0.272 in. jacket diameter provide flexibility and reduced bend radius in installation from 1 to 30 ft length.
- Well-engineered design to provide passing results every time.
- Supports PoE/PoE+ over 100 meter channels with 10 meters of 24 AWG patch cables included in the channel.
- Boot design is shortened to allow easier handling from patch panel to horizontal cable managers.
Standards Compliance
- UL Listed
- ISO/IEC 11801
- TIA/EIA-568.2-D
- IEC 61156-5
- UL 1863 and CAN/CSA-C22.2
- ANSI/TIA-1096-A (formerly FCC Part 68)
- Supports IEEE 802.3AF/802.3AT (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications
- RoHS Compliant
Additional information
| Weight | 1.042 lbs |
|---|
