Description

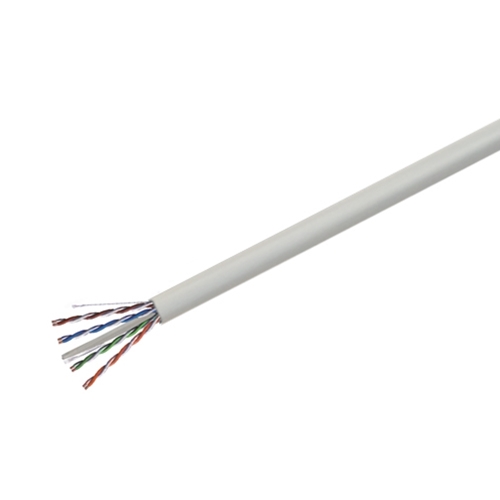

Vericom Category 6 CMX Indoor / Outdoor cable is designed to meet and exceed ANSI/TIA Category 6 standards and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz. The CMX indoor / outdoor rated cable utilizes 23 AWG solid conductors insulated with HDPE in a four twisted pair unshielded configuration, separated with an integral cross filler to reduce crosstalk providing maximum system performance.
Features & Benefits
- Cable meets ANSI/TIA-568.2-D for compatibility with all standard compliant components
- The cross filler within this Vericom Category 6 Cable keeps pairs separated and pair twist consistent through the length of the cable reducing crosstalk up to and beyond 250 MHz
- CMX rated jacket for indoor and outdoor applications
- UL Listed and RoHS compliant to ensure safety requirements are met
- Tested to 550 MHz to ensure consistent, repeatable performance within the existing standards as well as any future requirements for Category 6 cables
- Cable marking starts at a 1000ft and displays remaining cable length for future use
- Pull box packaging for easy installation and storage
Standards Compliance
- ANSI/TIA-568.2-D
- ISO/IEC 11801
- IEC 61156-5
- UL444
- RoHS Compliant
- Supports IEEE 802.3af/802.3at
Additional information
| Weight | 30.73 lbs |
|---|
