Description

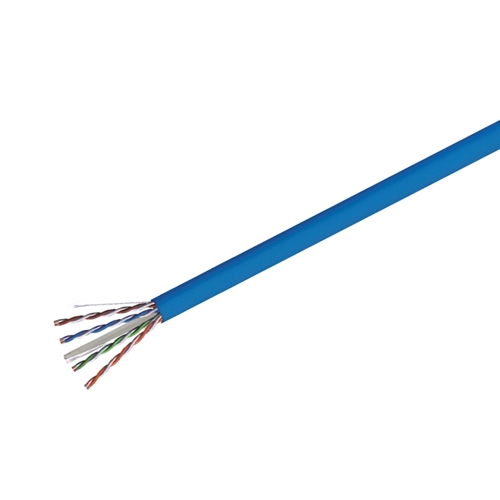

The Vericom Category 6 Cable supports 10GBASE-T Ethernet based on limited distances per the standard, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital video and broadband/baseband analog video, Voice over Internet Protocol (VoIP). Category 6 is backwards compatible with Category 5e systems and is ideal for plenum spaces in commercial applications.
Vericom Category 6 Plenum Cable is designed to meet and exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz. The 1000 ft. pull box of cable (Reelex® available but must be specified) is constructed with 23AWG solid conductors in a four pair configuration, separated with an integral cross filler to reduce crosstalk to provide maximum system performance. Vericom Category 6 CMP Cable has a nominal cable diameter of 0.22 in. (5.6 mm), is rated for plenum spaces.
Features & Benefits
- Solid bare copper center conductor
- Conductor Size: 23AWG
- 4 Unshielded Differential twisted pairsseparated with an integral cross filler to reduce crosstalk (U/UTP)
- CMP rated for plenum applications
- Cable marking starts at 1000 ft. and displays remaining cable length for future use
- Length: 1,000 ft.
- Efficient pull box design to reduce tangling and improve installation time
Standards Compliance
- Cable meets ANSI/TIA-568.2-D for compatibility with all standard compliant components
- ISO/IEC 11801
- IEC 61156-5
- UL Rated Temperature: 75°C
- UL 444
- C(UL)us Listed
- NFPA 262
- CSA 22.2 No. 214
- EU Directive 2011/65/EC
- EU Directive 2006/95/EC
- RoHS Compliant
- Supports IEEE 802.3af/802.3at
Additional information
| Weight | 28.66 lbs |
|---|
