Description
The Vericom VGS6 Category 6 Cable supports 10GBASE-T Ethernet based on limited distances per the standard, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital video and broadband/baseband analog video, Voice over Internet Protocol (VoIP). Category 6 is backwards compatible with Category 5e systems as well as IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications.

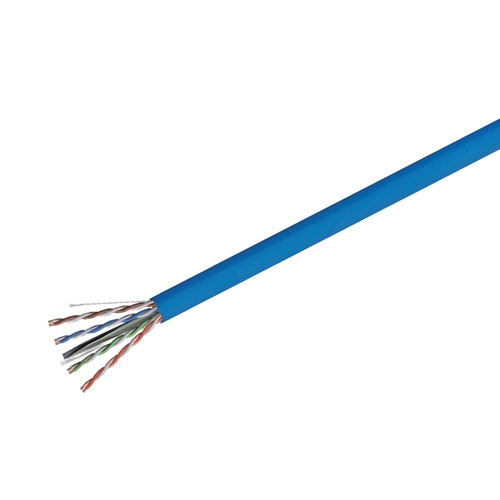

Vericom VGS6„¢Category 6 Plenum Cable is designed to meet and exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz.The 1000 ft. pull box of cable is constructed with 23 AWG solid conductors in a four pair configuration, separated with an integral cross filler to reduce crosstalk to provide maximum system performance.The conductor insulation and filler is FEP material with a PVC jacket. VGS6 Category 6 CMP Cable has a nominal cable diameter of 0.22 in. (5.7mm), is rated for plenum spaces and UL LP Listed for PoE applications.
Features & Benefits
- Smaller diameter cable design reduces bundle sizes to improve airflow in high density applications to reduce required pathway spaces and accommodate a smaller bend radius
- The cross filler within the Category 6 Cable keeps pairs separated and pair twist consistent through the length of the cable reducing crosstalk up to and beyond 250 MHz
- Rated for plenum spaces
- UL LP Listing ensures support of PoE/PoE+ over 100 meter channels.
- Tested to 600 MHz to ensure consistent, repeatable performance within the existing standards as well as any future requirements for Category 6 cables
- ANSI/TIA-568.2-D and ISO 11801 Class E Category 6 ensures interoperability with all standards compliant connectivity
- Cable marking starts at 1000 ft. and displays remaining cable length for future use
- Length: 1,000 ft.
- Pull box to reduce tangling and improve installation time
Standards Compliance
- ANSI/TIA-568.2-D
- ISO/IEC 11801
- EN 50173-1 Class EA
- IEC 61156-5
- UL Rated Temperature: 105°C
- UL 444 LP-Rating 0.6A for PoE
- RoHS Compliant
- SupportsIEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts), Type 4 (100 Watts)
Additional information
| Weight | 28.66 lbs |
|---|
