Description

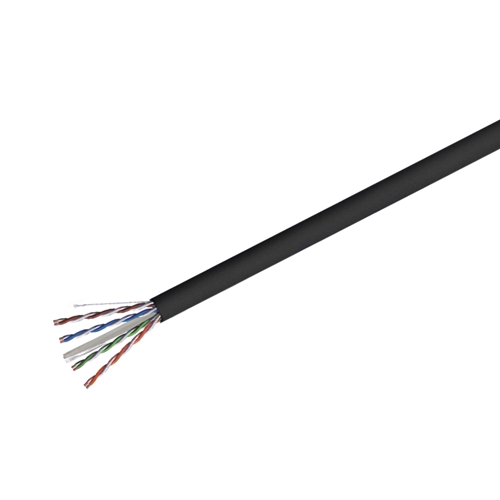

Vericom Category 6 Unshielded Direct Burial Gel Filled CMX cable supports 10GBASE-T Ethernet based on limited distances per the standard, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital video and broadband/baseband analog video, Voice over Internet Protocol (VoIP) for residential and commercial direct burial applications. Category 6 is backwards compatible with Category 5e systems.
Vericom Category 6 Unshielded Direct Burial Gel Filled CMX cables are designed to meet and exceed ANSI/TIA568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz. The cable construction utilizes 23 AWG solid conductors insulated with a gel compound filler and a sunlight resistant PVC in a four twisted pair unshielded configuration rated for direct burial applications.
Features & Benefits
- Solid bare copper center conductor
- Conductor Size: 23 AWG
- 4 Unshielded Differential twisted pairs separated with an integral cross fillerto reduce crosstalk (U/UTP)
- Gel compound filled with a UV resistant CMX rated jacket for direct burial applications
- Tested to 550 MHz to ensure consistency past the standards limit of 250 MHz
- Cable marking starts at 1000ft and displays remaining cable length for future use
- Length: 1,000 ft.
- Wooden spool packaging to ease installation and storage
Standards Compliance
- Cable meets ANSI/TIA-568.2-D for compatibility with all standard compliant components
- ISO/IEC 11801
- IEC 61156-5
- UL Rated Temperature: 75?C
- UL 444
- RoHS Compliant
- SupportsIEEE 802.3af/802.3at
Additional information
| Weight | 35.7 lbs |
|---|
