Description

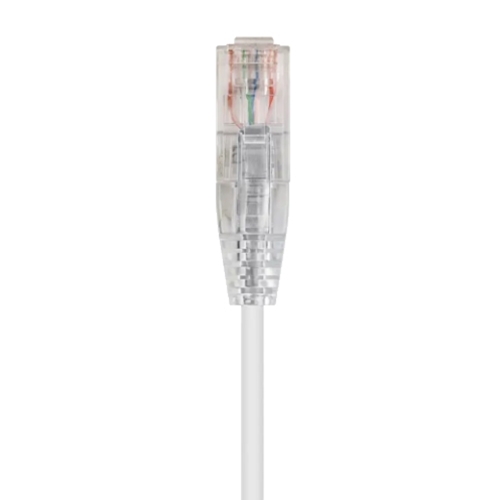

Vericom 28Flex Category 6 Patch Cables are designed to meet and exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz. The patch cables utilize 28AWG stranded conductors in a four pair unshielded configuration for maximum durability. 28Flex Patch Cables are rated CM and meet applications up to 10 Gigabit Ethernet with RJ-45 modular plugs and clear boots.
Available in many lengths and colors to meet specific project requirements. To maximize system performance, combine with Vericom connectivity and bulk cable.
Features & Benefits
- Smaller diameter cable design reduces bundle sizes to improve airflow in high density applications to reduce cooling costs and potentially extend the life of active electronics.
- Staggered RJ-45 plug design with 50 microinches of gold plating for maximum system reliability.
- Snagless clear boot design protects the RJ-45 plug, eases MACs, and provides modern aesthetics.
- Stranded conductors with a 0.142 in. jacket diameter provide flexibility and reduced bend radius in installation from 6 in. to 20 ft. length.
- 100% Wire Map and Patch Cable tested for a passing channel every time.
- Supports PoE/PoE+ over 92.5 meter channels with 10 meters of 28 AWG patch cables included in the channel.
- Supports PoE/PoE+ over 96 meter channels with 6 meters of 28 AWG patch cables included in the channel.
Standards Compliance
- UL-Listed
- ISO/IEC 11801
- TIA/EIA-568.2-D
- IEC 61156-5
- UL 1863 and CAN/CSA-C22.2
- ANSI/TIA-1096-A (formerly FCC Part 68)
- Supports IEEE 802.3AF/802.3AT (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications
- RoHS Compliant
Additional information
| Weight | 0.052 lbs |
|---|
