Description

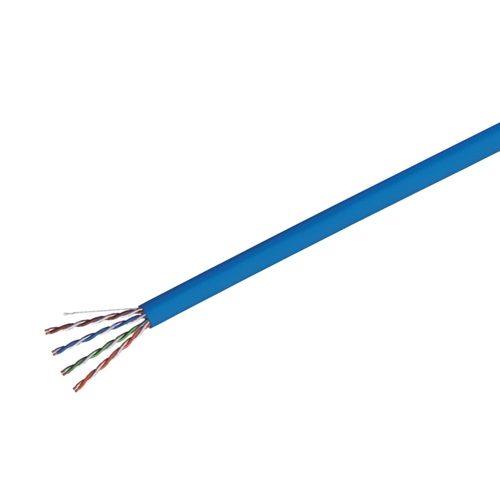

Vericom Category 5e Unshielded Plenum cable supports 10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/sATM, digital video, broadband/baseband analog video, and Voice over Internet Protocol (VoIP) for plenum spaces in commercial applications.
Vericom Category 5e Unshielded CMP Cables are designedto meet and exceed ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D electrical performance requirements for frequencies up to 100 MHz with test results to 350 MHz. The 1000ft pull box of cable (Reelex? available but must be specified) is constructed with 24 AWG solid conductors in a four pair configuration, with differential twisted pairs to reduce crosstalk and provide maximum system performance. The conductor insulation is FEP material with a LSFRPVC jacket. Our Category 5e CMP Cable has a nominal cable diameter of 0.17 in. (4.5mm), is rated for plenum spaces applications.
Features & Benefits
- Solid bare copper center conductor
- Conductor Size: 24 AWG
- 4 Unshielded Differential twisted pairs to reduce crosstalk (U/UTP)
- CMP rated for plenum applications
- Tested to 350 MHz to ensure consistency past the standards limit of 100 MHz
- Cable marking starts at 1000ft and displays remaining cable length for future use
- Length: 1,000 ft.
- Efficient pull box design to reduce tangling and improve installation time
Standards Compliance
- Cable meets ANSI/TIA-568.2-D for compatibility with all standard compliant components
- ISO/IEC 11801
- IEC 61156-5
- UL Rated Temperature: 75?C
- UL 444
- c(UL)us Listed
- NFPA 262
- CSA 22.2 No. 214
- EU Directive 2011/65/EC
- EU Directive 2006/95/EC
- RoHS Compliant
- Supports IEEE 802.3af/802.3at
Additional information
| Weight | 20.33 lbs |
|---|
