Description
The Vericom Category 6A Indoor/Outdoor cable supports 10GBASET Ethernet, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital video and broadband/baseband analog video, Voice over Internet Protocol (VoIP) and is backward compatible with Category 6 and 5e systems Compatible with PoE, PoE+, and PoE++.

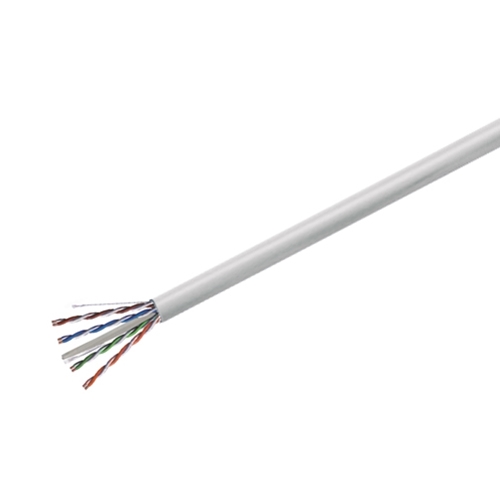

Vericom Category 6A CMR/CMX Indoor/Outdoor cable is designed to meet and exceed ANSI/TIA Category 6A standards and ISO 11801 Class E electrical performance requirements for frequencies up to 500 MHz. The cable utilizes 23 AWG solid conductors in a four-pair unshielded configuration rated for both CMR and CMX. The cable jacket is a UV Resistant PVC Jacket and incorporates a non-continuous Aluminum Foil. The cable construction incorporates a cross filler and a rip cord.
Features & Benefits
- Non-continuous Aluminum Foil can be used with UTP connectivity while managing Alien Cross Talk that can occur at higher frequencies used for Category 6A
- The cross filler within this Vericom Category 6A Cable keeps pairs separated and their twists consistent through the length of the cable, reducing crosstalk up to and beyond 500 MHz
- UV Resistant CMR/CMX jacket for outdoor applications in direct sunlight
- Tough, abrasion-resistant cable to stand up to outdoor installation requirements
- Ripcord to aid cable jacket preparation for field termination
- Reel-in-box packaging for easy installation and storage
- Reverse sequential footage markings to easily identify the length of the remaining cable
- UL 444 Severe Cold Impact ensures the cable will perform in the most extreme cold weather applications
- UL Listed and RoHS compliant to ensure safety requirements are met
- ANSI/TIA-568.2-D and ISO 11801 Class EA Category 6A ensure interoperability with all standards-compliant connectivity
Standards Compliance
- ANSI/TIA-568.2-D
- ISO/IEC 2nd Edition 11801 Class EA
- IEC 61156-5 for LAN Cable
- UL Listed CMX-Outdoor/ CMR
- UL Verified to UL Subject 444
- RoHS Compliant
- EU Directive 2011/65/EU
- Supports IEEE 802.3bt for PoE Applications
Additional information
| Weight | 41.89 lbs |
|---|
