Description
The Vericom VGS6E Category 6 Cable supports 10GBASE-T Ethernet based on limited distances per the standard, 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital video and broadband/baseband analog video, Voice over Internet Protocol (VoIP). Category 6 is backwards compatible with Category 5e systems as well as IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications.

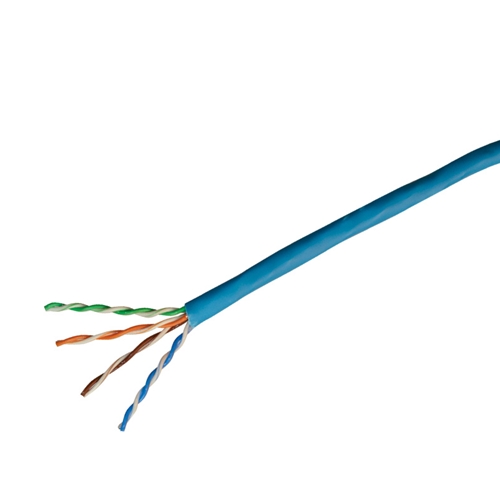

Vericom VGS6E Category 6 Riser Cable is designed to meet and exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz. The 1000ft pull box of cable is constructed with 23AWG solid conductors in a four pair configuration, without a cross filler for faster, more efficient cable termination. The conductor insulation is HDPE material with a PVC jacket. Vericom VGS6E Category 6 Category 6 CMR Cable has a nominal cable diameter of 0.22 in. (5.5 mm), is rated for non-plenum spaces and suitable for PoE applications.
Features & Benefits
- Smaller diameter cable design reduces bundle sizes to improve airflow in high density applications to reduce required pathway spaces and accommodate a smaller bend radius.
- Removes the filler to speed installation and manages crosstalk up to 250 MHz.
- Tested to 550 MHz to ensure consistent, repeatable performance within the existing standards as well as any future requirements for Category 6 Cables.
- ANSI/TIA-568.2-D and ISO 11801 Class E Category 6 ensures interoperability with all standards compliant connectivity.
- Support of PoE/PoE+ over 100 meter channels.
- Pull box to reduce tangling and improve installation time.
Standards Compliance
- Cable meets ANSI/TIA-568.2-D for compatibility with all standard compliant components
- ISO/IEC 11801
- EN 50173-1 Class EA
- IEC 61156-5
- UL 1666 (CMR)
- UL 444
- RoHS Compliant
- SupportsIEEE 802.3af/802.3at
Additional information
| Weight | 27.7 lbs |
|---|
