Cat 6 110 Type Patch Panel 12Port Vertical w/Bracket SKU: ATDS102190
Cat 6 110 Type Patch Panel 12Port Vertical w/Bracket SKU: ATDS102190 - Image 2

Cat 6 110 Type Patch Panel 12Port Vertical w/Bracket SKU: ATDS102190

$14.00

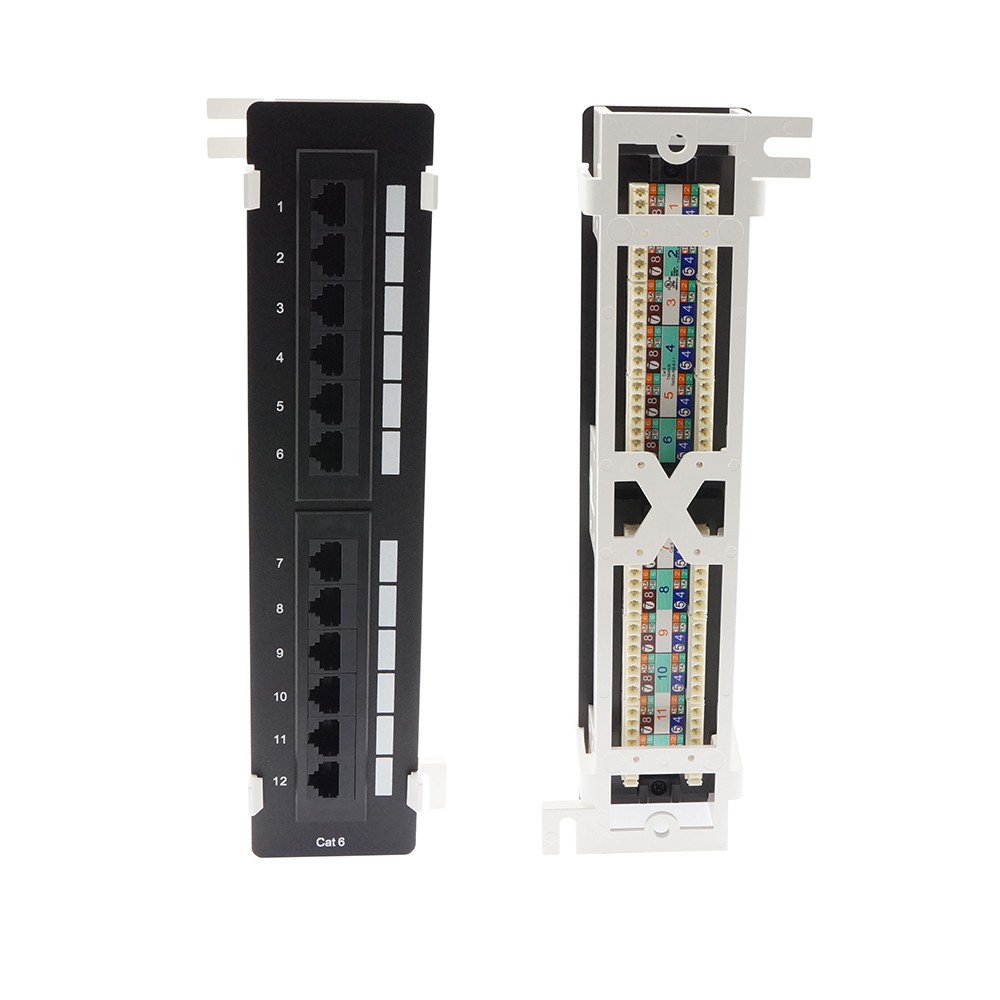

Cat 6 110 Type Patch Panel 12Port Vertical w/Bracket

316 in stock

Compare
SKU: ATDS102190 Categories: ,

Description

Description

  • UL listed
  • 19 inch 1U rackmount
  • Meets TIA/EIA-568B.2/568B.2-1 Cat 6, ISO/IEC 11801 and EN 50173-1 specification
  • Support T568A & B wiring
  • Wire diameter: 22 ~ 26AWG
  • Insulation diameter range: 0.70 to 1.40mm
  • Jack contacts: Phosphor bronze, 50micron gold plate over nickel plating.
  • IDC contacts: Phosphor bronze, 50micron gold plate over nickel plating.
  • Safety: UL1863
  • Flammability: UL 94 VO
  • Operating temperature: -40 to +70 degree Celsius
  • Weight: 1.55LBS
  • Mounting Hinge: 102215
  • 25 years warranty

    • Additional information

    Weight 1.03 lbs
