Call for Price

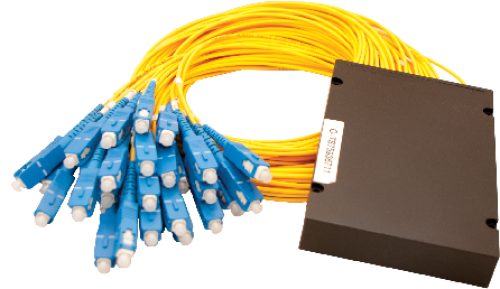

Multilinks custom terminated Cassette splitter.
| General Specifications | |
| Directivity |
55dB |
| Split Ratios |
1″> 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 2 x 8 2 x 16 2 x 32 |
| WDL |
1″> 0.3dB (1×2 Split Ratio) 0.3dB (1×4 Split Ratio) 0.3dB (1×8 Split Ratio) 0.8dB (1×16 Split Ratio) 0.5dB (1×32 Split Ratio) |
| Loss Uniformity |
1″> 0.5dB (1×2 Split Ratio) 0.7dB (1×4 Splite Ratio) 1.0dB (1×8 Split Ratio) 1.4dB (1×16 Splite Ratio) 1.8dB (1×32 Split Ratio) |
| Temperature Dependent Loss |
1″> 0.5dB (1×2 Split Ratio) 0.5dB (1×4 Split Ratio) 0.5dB (1×8 Split Ratio) 0.8dB (1×16 Split Ratio) 0.8dB (1×32 Split Ratio) |
| PDL |
1″> 0.2dB (1×2 Split Ratio) 0.2dB (1×4 Split Ratio) 0.3dB (1×8 Split Ratio) 0.3dB (1×16 Split Ratio) 0.3dB (1×32 Split Ratio) |
| Cable Length |
1″> 3 Meter 1 Meter 2 Meter .5 Meter 1.5 Meter 2.5 Meter |
| Fiber Specifications | |
| Operating Wavelength |
1260~1650nm |
| Cable Type |
1″> 900µm 2.0mm 3.0mm |
| Fiber Type |
SMF-28e |
| Return Loss |
55dB |
| Insertion Loss Typical |
1″> 4.0~3.6 (1×2) 7.4~6.8 (1×4) 10.5~10.2 (1×8) 13.5~13.3 (1×16) 16.9~16.2 (1×32) |
| Connector Specifications | |
| Connector Type |
1″> SC/UPC SC/APC LC/UPC FC/UPC ST/UPC LC/APC |
| Physical Specifications | |
| Dimensions |
Varies With Ports |
| Environmental Specifications | |
| Storage Temperature Range |
-40°C to 85°C |
| Operating Temperature |
-40°C to +85°C |
| Safety Standard Specifications | |
| Standards |
1″> Telcordia GR-1221 Compliant Telcordia GR-1209 Compliant G.657A1 Compliant |
