Description

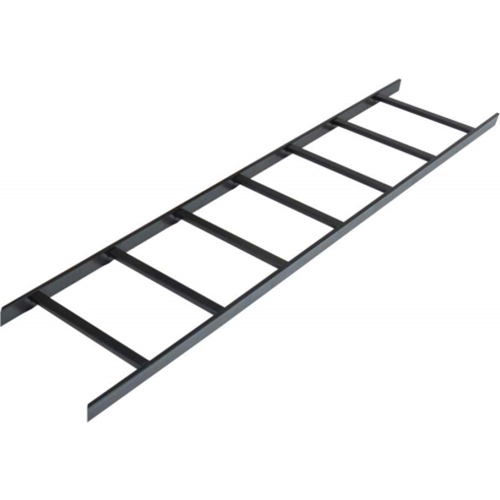

Our Cable Ladder Rack is an ideal solution anywhere an overhead cable run is required. The welded construction offers a maximum load of 132 lbs. per foot with minimum deflection (when supported every 5 ft.). Constructed of (2) 1-1/2 x 3/8 x 0.060 thick steel tubular stringers and (13) 1.00 x 1/2 cross members welded on 9.00 centers.
Features & Benefits
- Stringers: 1-1/2 x 3/8 x 0.06 thick tubular steel
- Cross Members: 1.00 x 1/2 thick tubular steel welded on 9.00 centers
- Max. load w/min. deflection: 132 lbs. per foot if supported every 5 feet
- Offered in 5 foot (VLR-1205) and 10 foot (VLR-1210) long sections
- Packaged and sold individually
Standards Compliance
- RoHS compliant<
Additional information
| Weight | 28 lbs |
|---|
