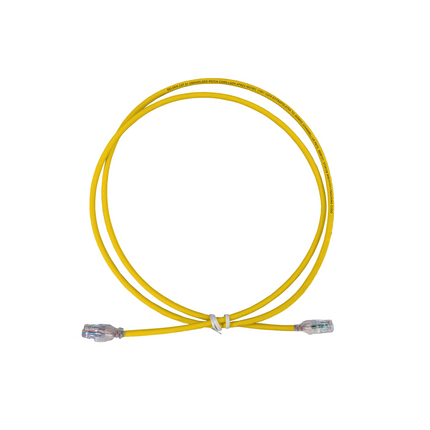

Product Overview
| Suitable Applications: |
Horizontal and building cabling. Support current and future Category6 & 5e applications, such as: 10Base-T,100Base-TX. |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 23 |
Solid |
BC – Bare Copper |
4 |
| Material |
| PE – Polyethylene |
| Material |
Nominal Diameter |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
6.1 mm |
| Wiring Scheme: |
T568A/B -T568A-B |
| Packaging: |
Individually packaged in a clear plastic bag. |
Connectors
| Description |
Material |
Type |
| Plug |
Unshielded Polycarbonate |
RJ45 |
| Boot |
Rubber boot pulled on through cable |
Snagless |
| Front Connection |
Phosphor bronze plated with 1.27?m gold over 2.54?m nickel undercoat |
Contact blades |
Electrical Characteristics
| Max. Conductor DCR |
| 20 mOhm |
| Voltage Rating [V] |
| 72 V DC Max |
Temperature Range
| Installation Temperature Range: |
0°C To +50°C |
| Operating Temperature Range: |
-20°C to +60°C |
Mechanical Characteristics
| Max. Pull Tension: |
20 lbs |
| Plug /Jack Compatibility: |
RJ45 |
| Termination |
Connection |
Durabilities |
| RJ45 |
Mated Connection |
750 Cycles |
Standards
| ISO/IEC Compliance: |
ISO/IEC 11801-1 |
| Data Category: |
Category 6 |
| TIA/EIA Compliance: |
ISO/IEC 11801-1, ANSI/TIA/EIA 568 C.2 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
Related Part Numbers
| Related Parts: |
CAT 6+ Modular Jacks, CAT 6+ Patch Panels |
History
| Update and Revision: |
Revision Number: 0.12 Revision Date: 10-21-2022 |
