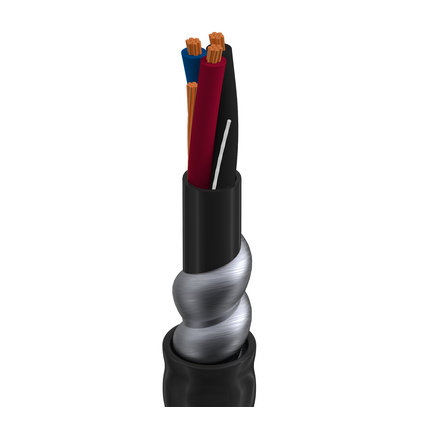

C5625 - Teck90 1000V, 3+G C #1+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5625 – Teck90 1000V, 3+G C #1+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5625 Categories: , , , ,

Description

Product Overview

Suitable Applications: CEC Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 1 AWG 19×14 BC – Bare Copper
Ground Wire 1 6 AWG 7×14 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) XLP, XLPO, XLPE (Thermoset) 0.080 in (2.0 mm) 0.487 in mm Black, Red, Blue
Ground Wire No Insulation
Outer Shield
Material
No Shield
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.083 in (2.1 mm) 1.213 in (30.81 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 1.473 in (37.41 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.053 in (1.3 mm) 1.579 in (40.11 mm) Yes
Overall Cable Diameter (Nominal): 1.579 in (40.11 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 0.132 Ohm/1000ft 145 Amps per Conductor at 30ºC
Ground Wire 0.419 Ohm/1000ft (1.37 Ohm/km)
Voltage
Voltage Rating
1000 V (TECK 90)

Mechanical Characteristics

Temperature
Operating Installation
-40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
12.6 in (320 mm) 12.6 in (320 mm)
Max. Pull Tension: 3718.3 lbs (1686.6 kg)
Bulk Cable Weight: 1575 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.65 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5625 0101640 Reel
C5625 0102460 Reel 612825283959
C5625 0103280 Reel
C5625 010984 Reel 612825283966
C5625 0102460 Reel
