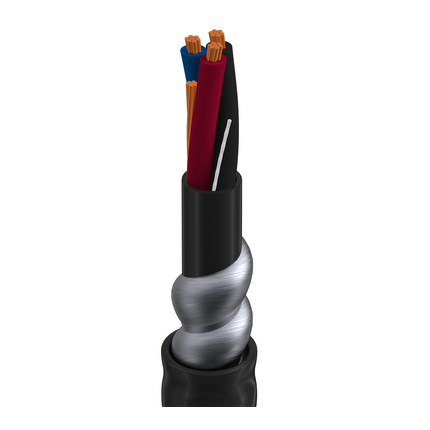

C5611 - Teck90 1000V, 3+G C #3+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5611 – Teck90 1000V, 3+G C #3+6 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5611 Categories: , , , ,

Description

Product Overview

Suitable Applications: Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 3 7×11 BC – Bare Copper
Ground 1 6 7×14 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
XLP, XLPO, XLPE (Thermoset) 0.061 in (1.5 mm) 0.373 in (9.47 mm) Black, Red, Blue
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.083 in (2.1 mm) 0.970 in (24.6 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 1.230 in (31.24 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.048 in (1.2 mm) 1.326 in (33.68 mm) Yes

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 0.209 Ohm/1000ft 115 Amps per Conductor at 30ºC
Ground 0.411 Ohm/1000ft (1.35 Ohm/km)
Voltage
Voltage Rating
1000 V (TECK 90)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation
90°C -40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
10.608 in (269.44 mm) 10.608 in (269.44 mm)
Max. Pull Tension: 2439.5 lbs (1106.5 kg)
Bulk Cable Weight: 1101 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.193 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5611 0102460 Reel 612825283850
C5611 0103281 Reel
C5611 0104920 Reel 612825283867
C5611 0105000 Reel
C5611 010984 Reel
