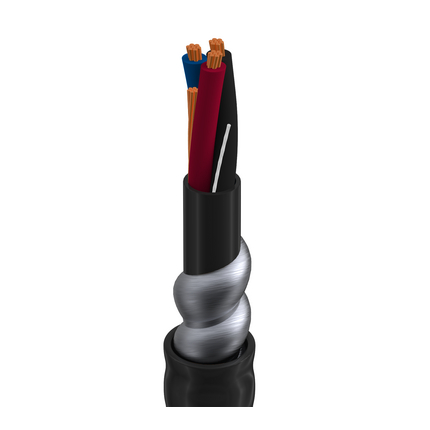

C5601 – Teck90 1000V, 3+G C #4+8 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C
Call for Price
CompareDescription
Product Overview
| Suitable Applications: | Power and Control Applications up to 600V |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 4 | 7×12 | BC – Bare Copper |
| Ground | 1 | 8 | 7×16 | BC – Bare Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| XLP, XLPO, XLPE (Thermoset) | 0.061 in (1.5 mm) | 0.347 in (8.81 mm) | Black, Red, Blue |
Inner Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.083 in (2.1 mm) | 0.840 in (21.3 mm) |
Armor
| Armor Type & Material | Diameter Over Armor |
|---|---|
| AIA – Aluminum Interlock Armor | 1.174 in (29.82 mm) |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC – Polyvinyl Chloride | 0.048 in (1.2 mm) | 1.270 in (32.26 mm) | Yes |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 0.26 Ohm/1000ft | 95 Amps per Conductor at 30ºC |
| Ground | 0.654 Ohm/1000ft (2.15 Ohm/km) |
Voltage
| Voltage Rating |
|---|
| 1000 V (TECK 90) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating | Installation |
|---|---|---|
| 90°C | -40°C To +90°C | -25°C To +90°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 10.16 in (258.1 mm) | 10.16 in (258.1 mm) |
| Max. Pull Tension: | 2077.4 lbs (942.29 kg) |
| Bulk Cable Weight: | 936 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance, Burial |
| CEC / C(UL) Compliance: | TECK 90, HL |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision: | Revision Number: 0.192 Revision Date: 12-22-2023 |
Part Numbers
Variants
| Item # | Putup Type |
|---|---|
| C5601 0101640 | Reel |
| C5601 0102000 | Reel |
| C5601 0103000 | Reel |
| C5601 0103280 | Reel |
| C5601 0106000 | Reel |
