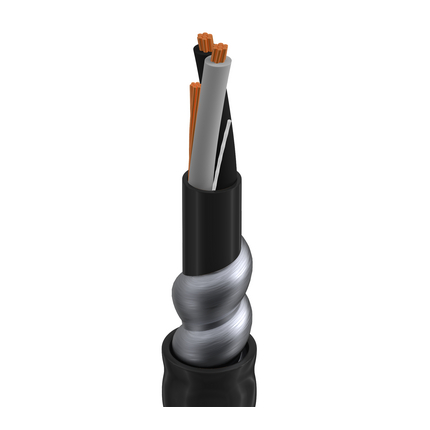

C5583 - Teck90 1000V, 2+G C #8+10 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5583 – Teck90 1000V, 2+G C #8+10 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5583 Categories: , , , ,

Description

Product Overview

Suitable Applications: CEC Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 8 AWG 7×17 BC – Bare Copper
Ground Wire 1 10 AWG 7×18 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) XLP, XLPO, XLPE (Thermoset) 0.045 in (1.1 mm) 0.234 in mm Black, White
Ground Wire No Insulation
Outer Shield
Material
No Shield
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.063 in (1.6 mm) 0.594 in (15.1 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 0.819 in (20.8 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.048 in (1.2 mm) 0.915 in (23.2 mm) Yes
Overall Cable Diameter (Nominal): 0.915 in (23.2 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 0.667 Ohm/1000ft 55 Amps per Conductor at 30ºC
Ground Wire 1.06 Ohm/1000ft (3.48 Ohm/km)
Voltage
Voltage Rating
1000 V (TECK 90)

Mechanical Characteristics

Temperature
Operating Installation
-40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
7.31 in (186 mm) 7.31 in (186 mm)
Max. Pull Tension: 753.6 lbs (341.8 kg)
Bulk Cable Weight: 394 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.125 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5583 0103281 Reel 612825283591
C5583 0105000 Reel
C5583 010984 Reel
C5583 0109840 Reel 612825283621
C5583 INJ9840 Reel 612825283560
C5583 0104920 Reel
