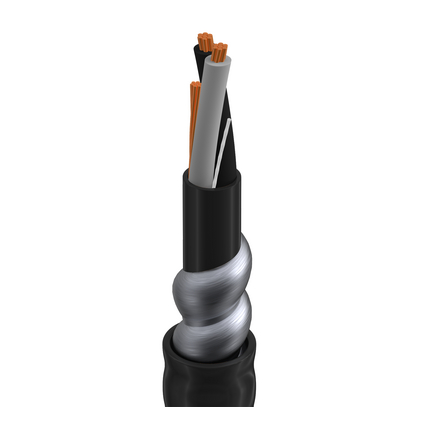

C5560 - Teck90 600V, 2+G C #10+12 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5560 – Teck90 600V, 2+G C #10+12 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5560 Categories: , , , ,

Description

Product Overview

Suitable Applications: Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 10 7×18 BC – Bare Copper
Ground 1 12 7×20 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
XLP, XLPO, XLPE (Thermoset) 0.03 in (0.76 mm) 0.174 in (4.42 mm) Black, White
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.047 in (1.2 mm) 0.442 in (11.2 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 0.667 in (16.9 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.048 in (1.2 mm) 0.763 in (19.4 mm) Yes

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 1.06 Ohm/1000ft 40 Amps per Conductor at 30ºC
Ground 1.65 Ohm/1000ft (5.41 Ohm/km)
Voltage
Voltage Rating
600 V (TECK 90)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation
90°C -40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
6.104 in (155.0 mm) 6.104 in (155.0 mm)
Max. Pull Tension: 550.4 lbs (249.7 kg)
Bulk Cable Weight: 278 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.259 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5560 01010000 Reel 612825283041
C5560 0102500 Reel 612825283065
C5560 0105000 Reel 612825283072
C5560 0107500 Reel 612825283089
C5560 INJ10000 Reel 612825283034
C5560 0105000 Reel
