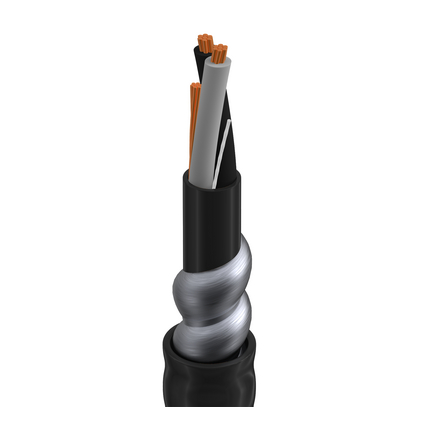

C5530 - Teck90 600V, 2+G C #12+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5530 – Teck90 600V, 2+G C #12+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5530 Categories: , , , ,

Description

Product Overview

Suitable Applications: Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 12 7×20 BC – Bare Copper
Ground 1 14 7×22 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
XLP, XLPO, XLPE (Thermoset) 0.03 in (0.76 mm) 0.150 in (3.81 mm) Black, White
Inner Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.408 in (10.4 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 0.633 in (16.1 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.048 in (1.2 mm) 0.729 in (18.5 mm) Yes

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 1.68 Ohm/1000ft 24 Amps per Conductor at 30ºC
Ground 2.67 Ohm/1000ft (8.76 Ohm/km)
Voltage
Voltage Rating
600 V (TECK 90)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation
90°C -40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
5.832 in (148.1 mm) 5.832 in (148.1 mm)
Max. Pull Tension: 228.2 lbs (103.5 kg)
Bulk Cable Weight: 225 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.257 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5530 01010000 Reel 612825282563
C5530 0102500 Reel 612825282570
C5530 0105000 Reel 612825282587
C5530 0105000 Reel 612825282587
C5530 0107500 Reel 612825282617
C5530 INJ10000 Reel 612825282556
C5530 01010000 Reel
C5530 0102500 Reel
