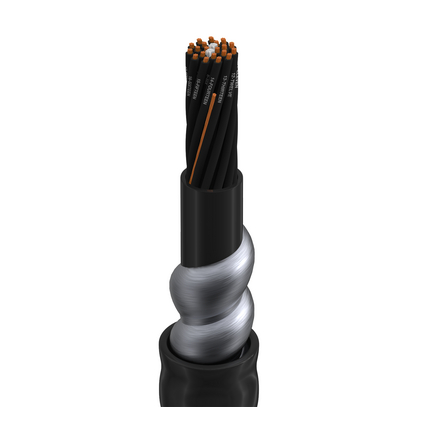

C5518 - Teck90 600V, 20+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5518 – Teck90 600V, 20+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5518 Categories: , , , ,

Description

Product Overview

Suitable Applications: CEC Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 20 14 AWG 7×22 BC – Bare Copper
Ground Wire 1 14 AWG 7×22 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) XLP, XLPO, XLPE (Thermoset) 0.030 in (0.76 mm) 0.132 in mm Black and Numbered
Ground Wire No Insulation
Outer Shield
Material
No Shield
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.083 in (2.1 mm) 0.867 in (22.0 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 1.127 in (28.63 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.048 in (1.2 mm) 1.223 in (31.06 mm) Yes
Overall Cable Diameter (Nominal): 1.223 in (31.06 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 2.7 Ohm/1000ft 17.5 Amps per Conductor at 30ºC
Ground Wire 2.67 Ohm/1000ft (8.76 Ohm/km)
Voltage
Voltage Rating
600 V (TECK 90)

Mechanical Characteristics

Temperature
Operating Installation
-40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
9.78 in (248 mm) 9.78 in (248 mm)
Max. Pull Tension: 200 lbs (91 kg)
Bulk Cable Weight: 771 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.180 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5518 0102500 Reel 612825282471
C5518 0105000 Reel 612825282488
C5518 INJ5000 Reel 612825282457
C5518 0105000 Reel 612825282488
C5518 0102500 Reel
