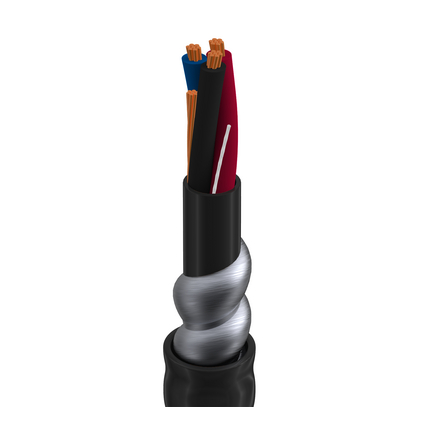

C5501 - Teck90 600V, 3+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

C5501 – Teck90 600V, 3+G C #14+14 Str BC, XLPE Ins M4, PVC Jkt, AIA Armor, Blk PVC Jkt, CSA HL SUN RES -40C

Call for Price

Compare
SKU: C5501 Categories: , , , ,

Description

Product Overview

Suitable Applications: CEC Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 14 AWG 7×23 BC – Bare Copper
Ground Wire 1 14 AWG 7×22 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) XLP, XLPO, XLPE (Thermoset) 0.03 in (0.76 mm) 0.132 in mm Red, Black, Blue
Ground Wire No Insulation
Outer Shield
Material
No Shield
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.047 in (1.2 mm) 0.378 in (9.60 mm)
Armor
Armor Type & Material Diameter Over Armor
AIA – Aluminum Interlock Armor 0.603 in (15.3 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.048 in (1.2 mm) 0.699 in (17.8 mm) Yes
Overall Cable Diameter (Nominal): 0.699 in (17.8 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 2.67 Ohm/1000ft 25 Amps per Conductor at 30ºC
Ground Wire 2.67 Ohm/1000ft (8.76 Ohm/km)
Voltage
Voltage Rating
600 V (TECK 90)

Mechanical Characteristics

Temperature
Operating Installation
-40°C To +90°C -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
5.59 in (142 mm) 5.59 in (142 mm)
Max. Pull Tension: 200 lbs (91 kg)
Bulk Cable Weight: 222 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
CEC / C(UL) Compliance: TECK 90, HL
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.253 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Putup Type UPC
C5501 01010000 Reel 612825281931
C5501 0102500 Reel 612825281955
C5501 0105000 Reel 612825281962
C5501 0105000 Reel 612825281962
C5501 0107500 Reel 612825282006
C5501 01010000 Reel
