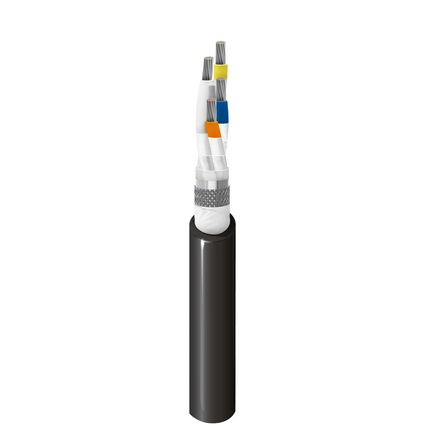

BPB52L1F - CAT5 100? 4x22AWG Profinet Type B fire resistant cable

BPB52L1F – CAT5 100? 4x22AWG Profinet Type B fire resistant cable

Call for Price

Compare
SKU: BPB52L1F Categories: , , ,

Description

Product Overview

Suitable Applications: For railway Ethernet Networking, Fire resistance, ProfiNet Application

Construction Details

Conductor
Size Material
22 AWG TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PO – Polyolefin 1.4 mm (0.055 in) White, Yellow, Blue, Orange
Table Notes: Fire resistance tape wrapped over insulated cores
Outer Shield
Shield Type Material Coverage Notes
Tape Polyester + Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 80% Fire resistance tape wrapped over braid
Outer Jacket
Material
LSZH – Low Smoke Zero Halogen (Flame Retardant)
Table Notes: E-beam cross-linked LSZH
Overall Cable Diameter (Nominal): 7.3 mm (0.29 in)

Electrical Characteristics

Electricals
Max. Conductor DCR
59.4 ?/km
Table Notes: Nom. fitted Impedance (?) 100 & Nom. Mutual Capacitance 56 pF/m
High Frequency
Frequency Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. RL (Return Loss) [dB] Min. Coupling Attenuation [dB]
4 4.9 dB/100 m 53 23
8 MHz 6.9 dB/100 m 48.5 24.5
10 MHz 7.8 dB/100 m 47 25
16 MHz 9.9 dB/100 m 43.9 25
20 MHz 11.1 dB/100 m 42.5 25
25 MHz 12.5 dB/100 m 41 24.2
31.3 MHz 14.1 dB/100 m 39.6 23.3 80
40 MHz 16.1 dB/100 38 22.4 80
62.5 MHz 20.4 dB/100 m 35.1 20.7 80
100 MHz 26.4 dB/100 m 32 19 80
Voltage
Voltage Rating Breakdown Voltage
300 V 2 kVac/min

Mechanical Characteristics

Temperature
Operating
-40 ? to + 80?
Table Notes: Nom. Bulk Weight of cable 70 kg/km

Standards and Compliance

Flammability / Reaction to Fire: IEC 60332-1-2, IEC 60332-3-25, IEC 60331-23, BS EN 50200 PH120
ISO/IEC Compliance: IEC 61156-2, IEC 61034-2 – Smoke Density Min Transmittance = 70%
CENELEC Compliance: EN 50289
European Halogen Free Standards: IEC 60754-1 – Halogen Amount = 0.5%, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 , IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): TJ/CL 313

Product Notes

Notes: Toxicity of insulation (EN 45545-2 Table 5-R15 and R16-HL3) ? 6 ; Toxicity of jacket (EN 45545-2 Table 5-R15 and R16-HL3) ? 6 ; Hazard level (EN 45545-2) HL3 ; IEC 61156-6, UL 758

History

Update and Revision: Revision Number: 0.17 Revision Date: 12-12-2023
