Category 6 Cross Connect Cable, 4 Pair, U/UTP, CMR (Category 6 Cable) – Belden (XCGB4)

Call for Price

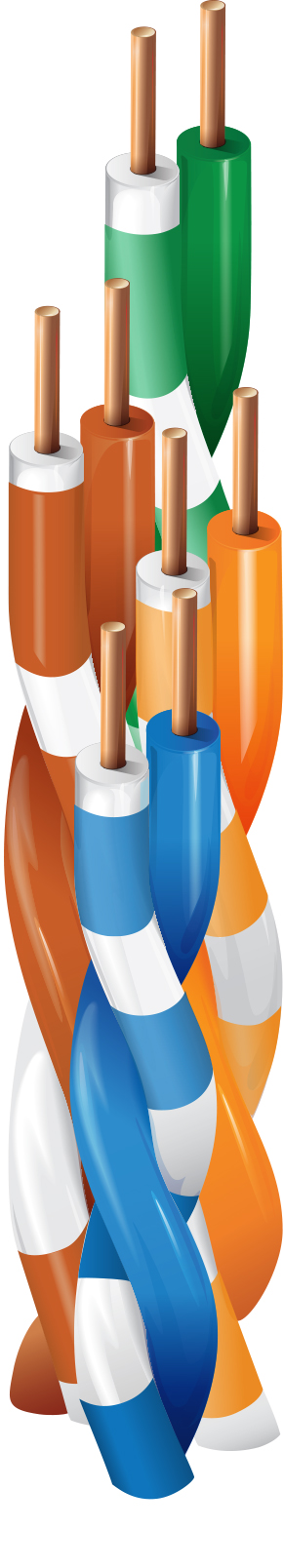

Category 6 Premise Cross Connect Cable (250MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Compare
SKU: BELDEN-XCGB4 Categories: , , ,
Belden

Description

Features & Benefits

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
  • Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders

Specifications

Product Overview

Suitable Applications

Cross-Connect, Interconnect

Construction Details

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4

Insulation

Material Color Code
PO+FEP – Polyolefin + Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Table Notes

Overall Nominal Diameter: 0.185 in

Electrical Characteristics

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. SRL (Structural Return Loss) [dB] Max./Min. Fitted Impedance [Ohm]
0.772 1.8 dB/100m 102 ± 15
1 2.0 dB/100m 20 100 ± 15
4 3.7 dB/100m 23 100 ± 15
8 5.2 dB/100m 24.5 100 ± 15
10 5.8 dB/100m 25 100 ± 15
16 7.4 dB/100m 25 100 ± 15
20 8.3 dB/100m 25 100 ± 15
25 9.3 dB/100m 24.3 100 ± 15
31.25 10.4 dB/100m 23.6 100 ± 15
62.5 15.0 dB/100m 21.5 100 ± 15
100 19.3 dB/100m 20.8 100 ± 15
155 24.5 dB/100m 19.5 100 ± 15
200 28.3 dB/100m 18.7 100 ± 15
250 32.1 dB/100m 18 100 ± 15
300 35.6 dB/100m 17.5 100 ± 15

Mechanical Characteristics

Temperature

UL Temperature
60°C

Bend Radius

Stationary Min. Installation Min.
1 in (25 mm) 1 in (25 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

18 lbs/1000ft

Standards and Compliance

Part Numbers

Flammability / Reaction to Fire

UL 1685 (UL Loading)

CPR Compliance

CPR UKCA Class: Eca

NEC / UL Compliance

Cross-Connect

Data Category

Category 6

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

UK Regulation Compliance

UKCA Mark

Item # Color Putup Type Length UPC
XCGB4 000A1000 Reel-in-Box 1,000 ft 612825300472
XCGB4 000A1000 Reel-in-Box 1,000 ft 612825300472
XCGB4 0001000 Black Reel 1,000 ft 612825354956
XCGB4 0001000 Black Reel 1,000 ft 612825354956
