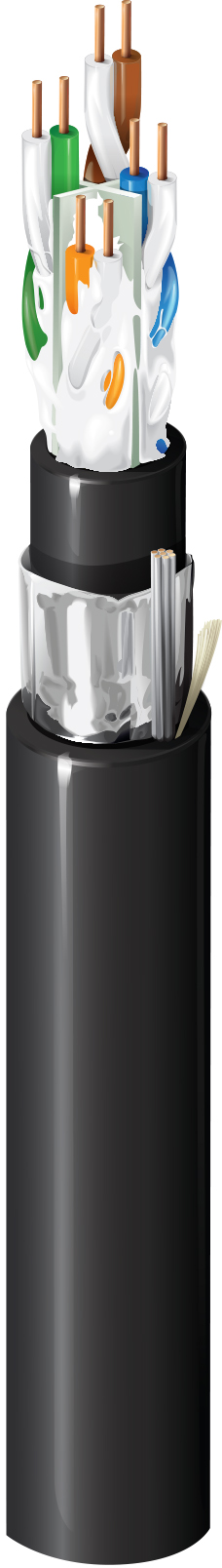

Category 6A OSP Cable, 4 Pair, F/UTP, Gel Filled (Category 6A Cable) – Belden (OSP6AF)

Call for Price

Category 6A Horizontal Premise Cable (500MHz), OSP Rated, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP, Inner Polyolefin Jacket, Gel-Filled, Outer Polyolefin Jacket
Our Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry’s gold standard for performance, while, Belden’s newest cable, 10GXW, is the industry’s smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.

Compare
SKU: BELDEN-OSP6AF Categories: , , ,
Belden

Description

Features & Benefits

  • Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
  • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
  • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
  • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
  • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

Specifications

Product Overview

Suitable Applications

OSP-Outside Plant, Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, HDBaseT

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size Stranding Material No. of Pairs
23 Solid BC – Bare Copper 4

Insulation

Material Color Code
PO – Polyolefin White & Blue, White & Orange, White & Green, White & Brown

Inner Jacket

Material Nom. Diameter
PE – Polyethylene 0.26 in (6.6 mm)

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 26 AWG (7×34) TC

Outer Jacket

Material Nom. Diameter Ripcord
PO – Polyolefin 0.360 in (9.14 mm) Yes

Overall Cable Diameter (Nominal)

0.360 in (9.14 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km 45 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 64%
High Frequency

Part Numbers

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 dB/100m 74.3 72.3 72.2 70.2 67.8 64.8 20.0 105 +/- 10 115 +/- 15 67.0 67.0 40.0 35.0
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.8 23.0 105 +/- 10 100 +/- 7 67.0 66.2 40.0 23.0
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 24.5 100 +/- 22 100 +/- 7 67.0 60.1 40.0 16.9
10 5.9 dB/100m 59.3
Item # Color Putup Type Length UPC
OSP6AF 0101000 Black Reel 1,000 ft 612825378839
