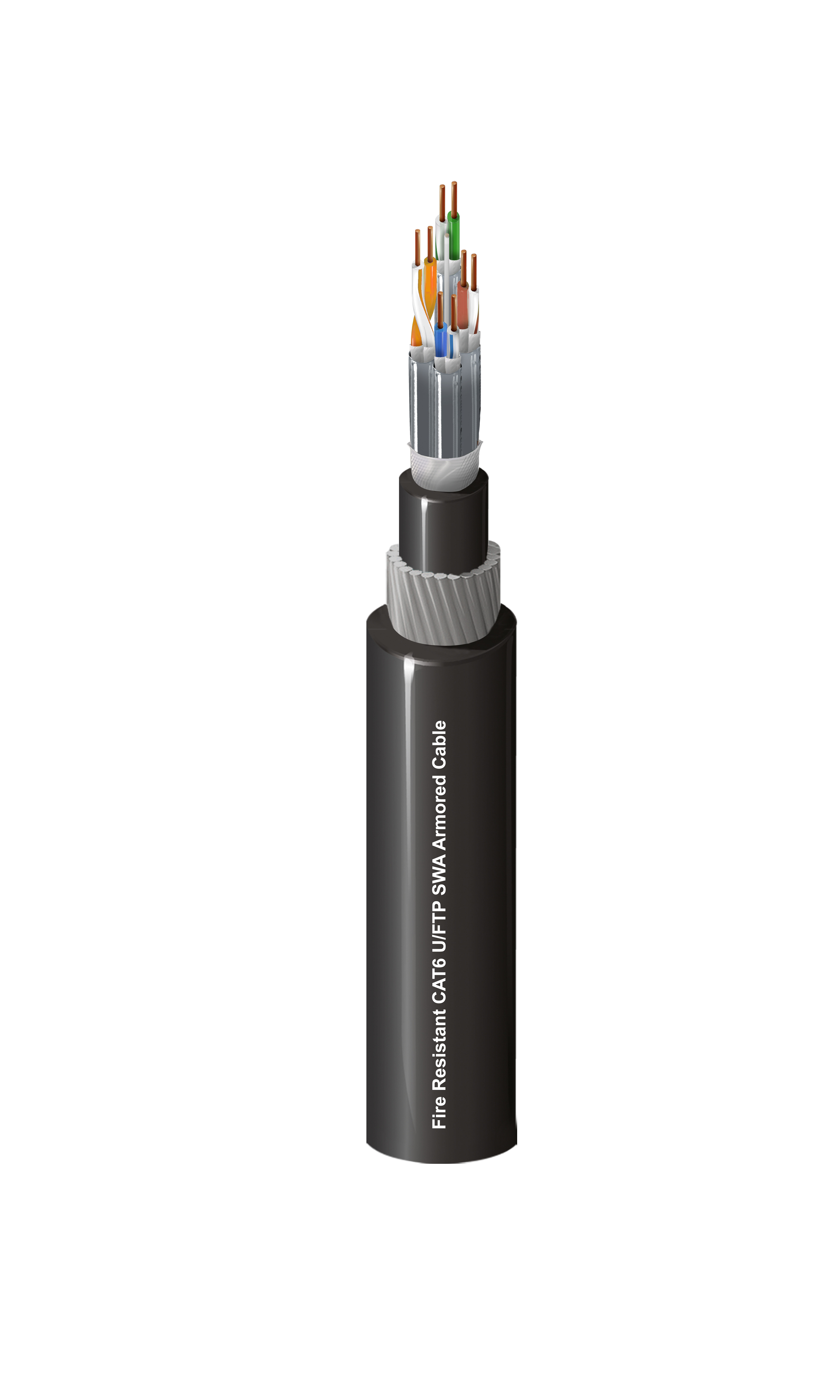

23 AWG solid bare twisted copper conductors, Mica Glass Tape Fire Protection barrier on each conductor, Polyethylene insulation, U/FTP, SWA Fire Reistant, Central Drain Wire, Mica Glass Tape, LSZH Inner Jacket, Armoring, LSZH Jacket
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.
Specifications
Product Overview
|
Suitable Applications |
Industrial Ethernet Cat 6 connection with Fire Resistant capability |
|---|
Construction Details
Conductor
| Element | Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| Conductor(s) | 23 | Solid | BC – Bare Copper | 4 | 8 |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE – Polyethylene | 1.58 mm (0.0622 in) | Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip | Fire Protection Barrier: Mica glass Tape(MGT), Twist Direction = S, 25% AL-mylar tape(Overlapping) |
Inner Shield
| Drainwire Type | Notes |
|---|---|
| 26 AWG (Solid) TC | Fire Protection Barrier: Mica Glass Tape(MGT) |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 11.80 mm (0.4646 in) |
Armor
| Armor Type & Material |
|---|
| SWA – Steel Wire Armor |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 15.30 mm (0.6024 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|
| 73.2 Ohm/km (22.3 Ohm/1000ft) | 330 pF/100m | 100 Ohm |
Delay
| Max. Delay | Max. Delay Skew |
|---|---|
| 536 ns/100m | 45 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 1 | 2.03 | 74.3 | 72.3 | 67.8 | 64.8 | 20 |
| 4 | 3.78 | 65.3 | 63.3 | 55.8 | 52.8 | 23 |
| 8 | 5.32 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 5.95 | 59.3 | 57.3 | 47.8 | 44.8 | 25 |
| 16 | 7.55 | 56.2 | 54.2 | 43.7 | 40.7 | 25 |
| 20 | 8.47 | 54.8 | 52.8 | 41.8 | 38.8 | 25 |
| 25 | 9.51 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.67 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
