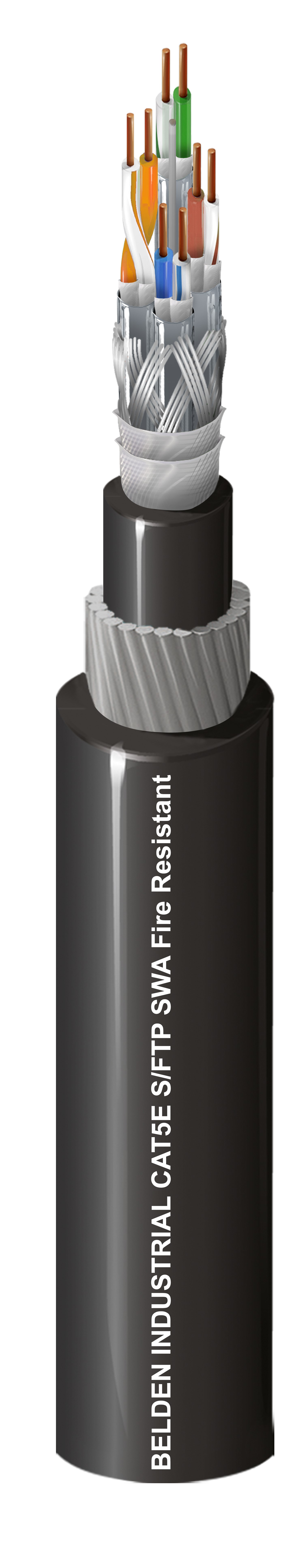

DataTuff™ Industrial Ethernet CAT5e 4x2x23AWG/1 S/FTP SWA Fire Resistant, Water- block (Category 5e Cable) – Belden (NH50105SFA)

Features & Benefits

• Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
• Superior Electrical Performance: Exceeds Category 5e performance
• Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
• Stable Electricals: 1200 Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
• No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design

Specifications

Product Overview

Suitable Applications	Industrial Ethernet Cat 5e connection with Fire Resistant capability

Construction Details

Conductor

Element	Size	Stranding	Material	No. of Pairs	No. of Elements
Conductor(s)	23	Solid	BC – Bare Copper	4	8

Insulation

Material	Nom. Insulation Diameter	Color Code	Notes
PE – Polyethylene	1.48 mm (0.0583 in)	Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip	Fire Protection Barrier: Mica glass Tape(MGT), Twist Direction = S, 25% AL-mylar tape(Overlapping)

Inner Shield

Shield Type	Material	Coverage	Drainwire Type	Notes
Braid	Tinned Copper (TC)	60%	26 AWG (Solid) TC	Fire Protection Barrier: Mica Glass Tape(MGT), Water blocking structure: Water block tape

Inner Jacket

Material	Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant)	12.02 mm (0.4732 in)

Armor

Armor Type & Material
SWA – Steel Wire Armor

Outer Jacket

Material	Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant)	15.50 mm (0.6102 in)

Electrical Characteristics

Electricals

Max. Conductor DCR	Max. Capacitance Unbalance	Nom. Characteristic Impedance
73.2 Ohm/km (22.3 Ohm/1000ft)	330 pF/100m	100 Ohm

Delay

Max. Delay	Max. Delay Skew
538 ns/100m	45 ns/100m

High Frequency

Part Numbers

Frequency [MHz]	Max. Insertion Loss (Attenuation) [dB/100m]	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. RL (Return Loss) [dB]
1	2.04	65.3	62.3	20.0
4	4.05	56.3	53.3	23.0
8	5.77	51.8	48.8	24.5
10	6.47	50.3	47.3	25.0
16	8.25	47.2	44.2	25.0
20	9.27	45.8	42.8	25.0
25	10.42	44.3	41.3	24.3
30	11.47	43.1	40.1	23.8
31.25	11.72	42.9	39.9	23.6
62.5	16.99	38.4	35.4	21.5

Item #	Color	Putup Type	Length	EAN
NH50105SFA-A305	Black	Reel	305 m	8719605213280
