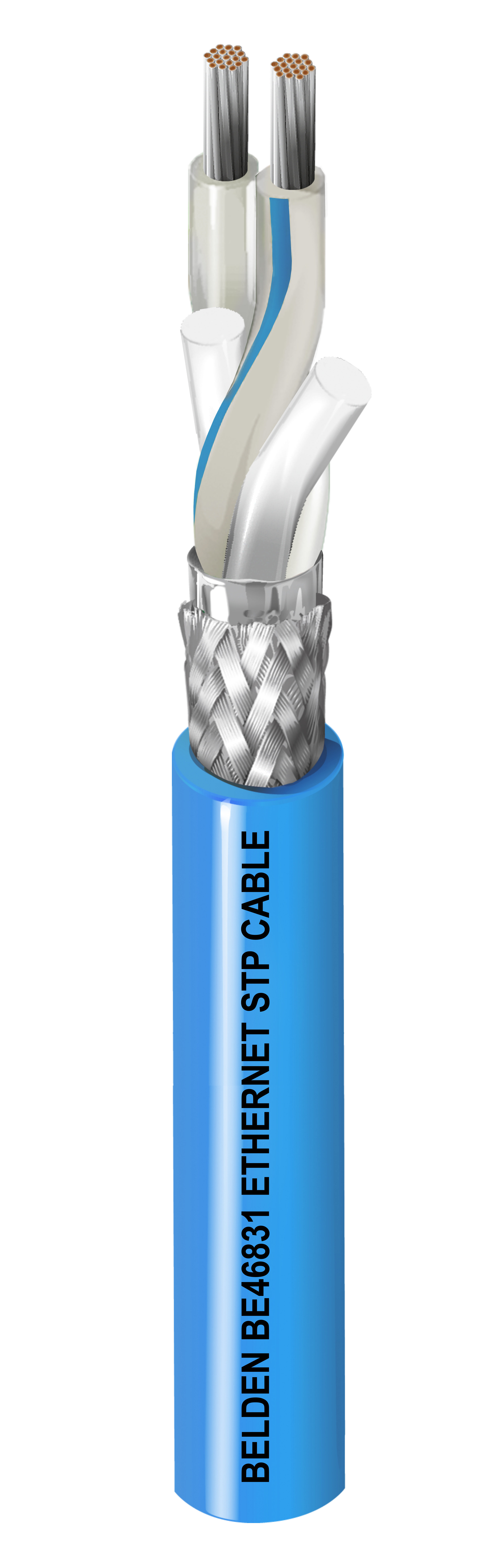

MarineTuff Ethernet 1 Pair x 22AWG, STP, Stranded Tinned Copper Conductor, XLPE Insulation, SHF2 Outer Jacket
Industrial automation systems are undergoing transformations that include the deployment of industrial Ethernet. Keep your connections strong with Belden’s complete range of high-quality, reliable DataTuff® Industrial Ethernet Cables. Designed specifically for industrial applications, these cables offer consistent and reliable performance in even the harshest environments.
Specifications
Product Overview
|
Suitable Applications |
1 single pair Ethernet up to 600 MHz, IEC 60092-376 |
|---|
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 AWG | 7×0.25 mm | TC – Tinned Copper | 1 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| XLP, XLPO, XLPE | 2.15 mm (0.0846 in) | Nature & Nature with blue stripe |
Outer Shield
| Shield Type | Material |
|---|---|
| Tape | Bi-Laminate (Alum+Poly) |
| Braid | Tinned Copper (TC) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH – Low Smoke Zero Halogen (SHF-2, Flame Retardant, Thermoset) | 6.20 mm (0.244 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|
| 59.4 Ohm/km (18.1 Ohm/1000ft) | 1,600 pF/km | 100 Ohm |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|
| 1 | 3.1 | 20 | 40 | 40 |
| 4 | 5.6 | 23 | 40 | 28 |
| 10 | 8.7 | 25 | 35 | 20 |
| 20 | 12.3 | 25 | 30.5 | 14 |
| 62.5 | 21.9 | 20.7 | 23.1 | 5 |
| 100 | 27.8 | 19 | 20 | 5 |
| 250 | 44.6 | 15.6 | 14 | 5 |
| 500 | 64.1 | 15.6 | 9.5 | 5 |
| 600 | 70.7 | 15.6 | 8.3 | 5 |
|
Transfer Impedance Class |
Grade 2 |
|---|
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -40°C to + 105°C |
Standards and Compliance
|
Flammability / Reaction to Fire |
FT2, IEC 60332-1-2, IEC 60332-3-22 |
|---|---|
|
Data Category |
SPE 1000 Mbps |
|
ISO/IEC Compliance |
IEC 61156-12, IEC 61034-2 – Smoke Density Min Transmittance = 70% |
|
European Halogen Free Standards |
IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = 0.5 %, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3 |
