Category 3 Cable

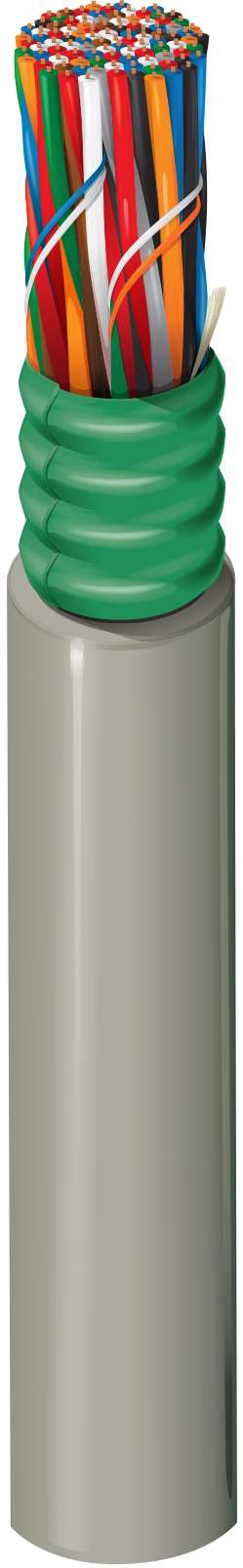

CAT3 Backbone, 50pr, Armor Shield, PVC Jkt, CMR (Category 3 Cable) – Belden (ATMM50)

Call for Price

CAT3, ATMM/ARMM, 50-Pair, F/UTP-foil shield , Riser-CMR, Premise Backbone Cable, 24 AWG solid bare copper conductors, foam polyolefin insulation with PVC skin, ripcord, corrugated aluminum shield bonded to overall PVC jacket
Belden’s DataTwist 3 products come in a variety of pair counts ranging from 2 to 400 in riser and plenum. ATMM (corrugated aluminum tape) versions are also available for added crush resistance.

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Features & Benefits

  • Rugged Design: Cables meet and exceed ANSI/TIA-568-C.2 and CSA T529-95 specifications
  • Engineered to Perform: High-value UTP cable engineered to perform to Category 3 requirements per ANSI/TIA-568-C.2

Specifications

Product Overview

Suitable Applications

Premise Backbone Cable

Physical Characteristics (Overall)

Conductor

AWG Stranding Material No. of Pairs
24 Solid BC – Bare Copper 50

Conductor Count

100

Total Number of Pairs

50

Insulation

Material
PO – Polyolefin (Foam)

Bonded-Pair

N/A

Color Chart

Number Color
1 White & Blue
2 White & Orange
3 White & Green
4 White & Brown
5 White & Slate
6 Red & Blue
7 Red & Orange
8 Red & Green
9 Red & Brown
10 Red & Slate
11 Black & Blue
12 Black & Orange
13 Black & Green
Group One Binder White/Blue (12 Pr)
Group Two Binder White/Blue (13 Pr)
Group Three Binder White/Orange (12 Pr)
Group Four Binder White/Orange (13 Pr)

Color Chart 2

Number Color
1 White/Blue (12)
2 White/Blue (13)
3 White/Orange (12)
4 White/Orange (13)

Outer Shield

Material
Aluminum

Outer Jacket

Material Nominal Diameter Ripcord
PVC – Polyvinyl Chloride 0.660 in Yes

Construction and Dimensions

Armor

Type of Armor Material Thickness of Armoring Tape
Corrugated Aluminum .008 in

Electrical Characteristics

Conductor DCR

Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 5 %

Capacitance

Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 17 pF/ft

Delay

Part Numbers

Frequency [MHz] Max. Delay
Item # Color Put-Up Type Length UPC
ATMM50 008CUT Gray Cut to Length 612825061991
ATMM50 008CUT Gray Cut to Length 1 ft 612825061991

Systems to Support Key Applications
Blade Slot Selection Table

Brand

Belden
