CAT3 Backbone, 100pr, Armor Shield, PVC Jkt, CMR (Category 3 Cable) – Belden (ATMM100)

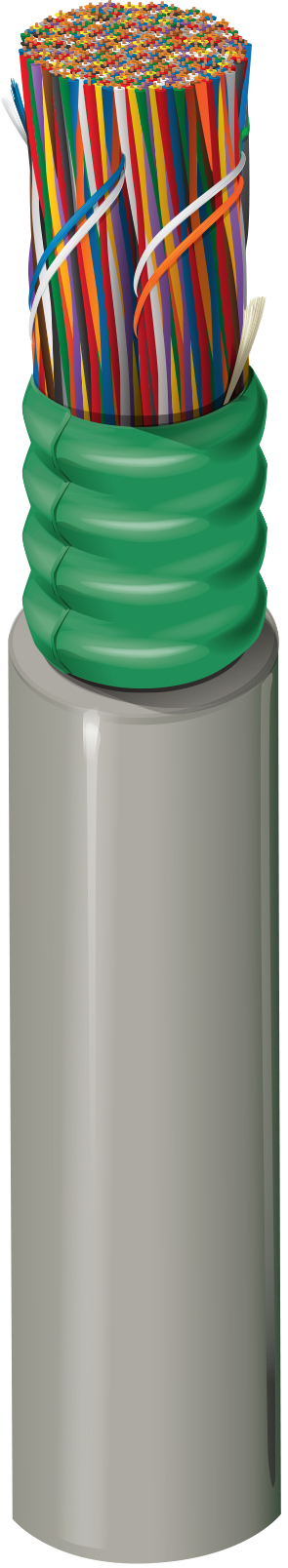

CAT3, ATMM/ARMM, 100-Pair, F/UTP-foil shield , Riser-CMR, Premise Backbone Cable, 24 AWG solid bare copper conductors, foam polyolefin insulation with PVC skin, ripcord, corrugated aluminum shield bonded to overall PVC jacket
Belden’s DataTwist 3 products come in a variety of pair counts ranging from 2 to 400 in riser and plenum. ATMM (corrugated aluminum tape) versions are also available for added crush resistance.
Call for Price
Features & Benefits
- Rugged Design: Cables meet and exceed ANSI/TIA-568-C.2 and CSA T529-95 specifications
- Engineered to Perform: High-value UTP cable engineered to perform to Category 3 requirements per ANSI/TIA-568-C.2
Specifications
Product Overview
|
Suitable Applications |
Premise Backbone Cable |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC – Bare Copper | 100 |
|
Conductor Count |
200 |
|---|---|
|
Total Number of Pairs |
100 |
Insulation
| Material |
|---|
| PO – Polyolefin (Foam) |
|
Bonded-Pair |
N/A |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | White & Blue |
| 2 | White & Orange |
| 3 | White & Green |
| 4 | White & Brown |
| 5 | White & Slate |
| 6 | Red & Blue |
| 7 | Red & Orange |
| 8 | Red & Green |
| 9 | Red & Brown |
| 10 | Red & Slate |
| 11 | Black & Blue |
| 12 | Black & Orange |
| 13 | Black & Green |
| 14 | Black & Brown |
| 15 | Black & Slate |
| 16 | Yellow & Blue |
| 17 | Yellow & Orange |
| 18 | Yellow & Green |
| 19 | Yellow & Brown |
| 20 | Yellow & Slate |
| 21 | Violet & Blue |
| 22 | Violet & Orange |
| 23 | Violet & Green |
| 24 | Violet & Brown |
| 25 | Violet & Slate |
| Group One Binder | White/Blue |
| Group Two Binder | White/Orange |
| Group Three Binder | White/Green |
| Group Four Binder | White/Brown |
Color Chart 2
| Number | Color |
|---|---|
| 1 | Blue/White |
| 2 | Orange/White |
| 3 | Green/White |
| 4 | Brown/White |
Outer Shield
| Material |
|---|
| Aluminum |
Outer Jacket
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.850 in | Yes |
Construction and Dimensions
Armor
| Type of Armor | Material |
Thickness of Armoring Tape
Part Numbers
|
|---|
