RS232/422 Low Cap, #24-2pr, FPO, Indiv. Foil, LSZH Jkt, 100Ω (Category 6 Cable) – Belden (9729NH)

Call for Price

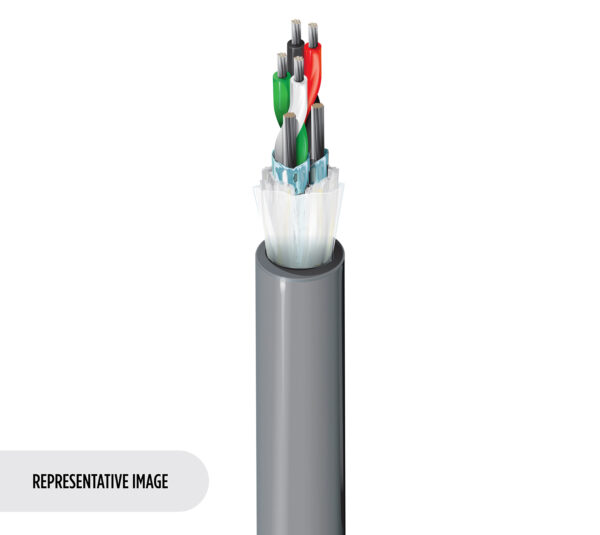

Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7×32) tinned copper conductors, Datalene® insulation, 2 twisted pairs each individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire each pair, LSZH jacket.
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Compare
SKU: BELDEN-9729NH Categories: , , ,
Belden

Description

Features & Benefits

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
  • Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders

Specifications

Product Overview

Suitable Applications

RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); digital audio; panel wiring

Construction Details

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 2 24 AWG 7×32 TC – Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.019 in (0.48 mm) 0.061 in (1.5 mm) Black & Red, Black & White

Inner Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.048 in (1.2 mm) 0.3 in (7.6 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
78.7 Ohm/km 3.23 Ohm/1000ft (10.6 Ohm/km) 41 pF/m (12 pF/ft) 76.1 pF/m (23.2 pF/ft) 100 Ohm 76% 1 Amps per Conductor at 25ºC

Mechanical Characteristics

Temperature

Operating Installation Storage
-45°C To +80°C -15°C To +80°C -45°C To +80°C

Bend Radius

Installation Min.
79 mm

Max. Pull Tension

11 lbs (5.0 kg)

Bulk Cable Weight

33 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor – Euroclass Dca, Indoor, Non-Halogenated, Sunlight Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s1,d1,a1; CPR UKCA Class: Dca-s1,d1,a1

ISO/IEC Compliance

IEC 61034-2 – Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3

European Directive Compliance

EU CE Mark

UK Regulation Compliance

UKCA Mark

Product Notes

Notes

Datalene« insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision

Revision Number: 0.331 Revision Date: 12-22-2023
