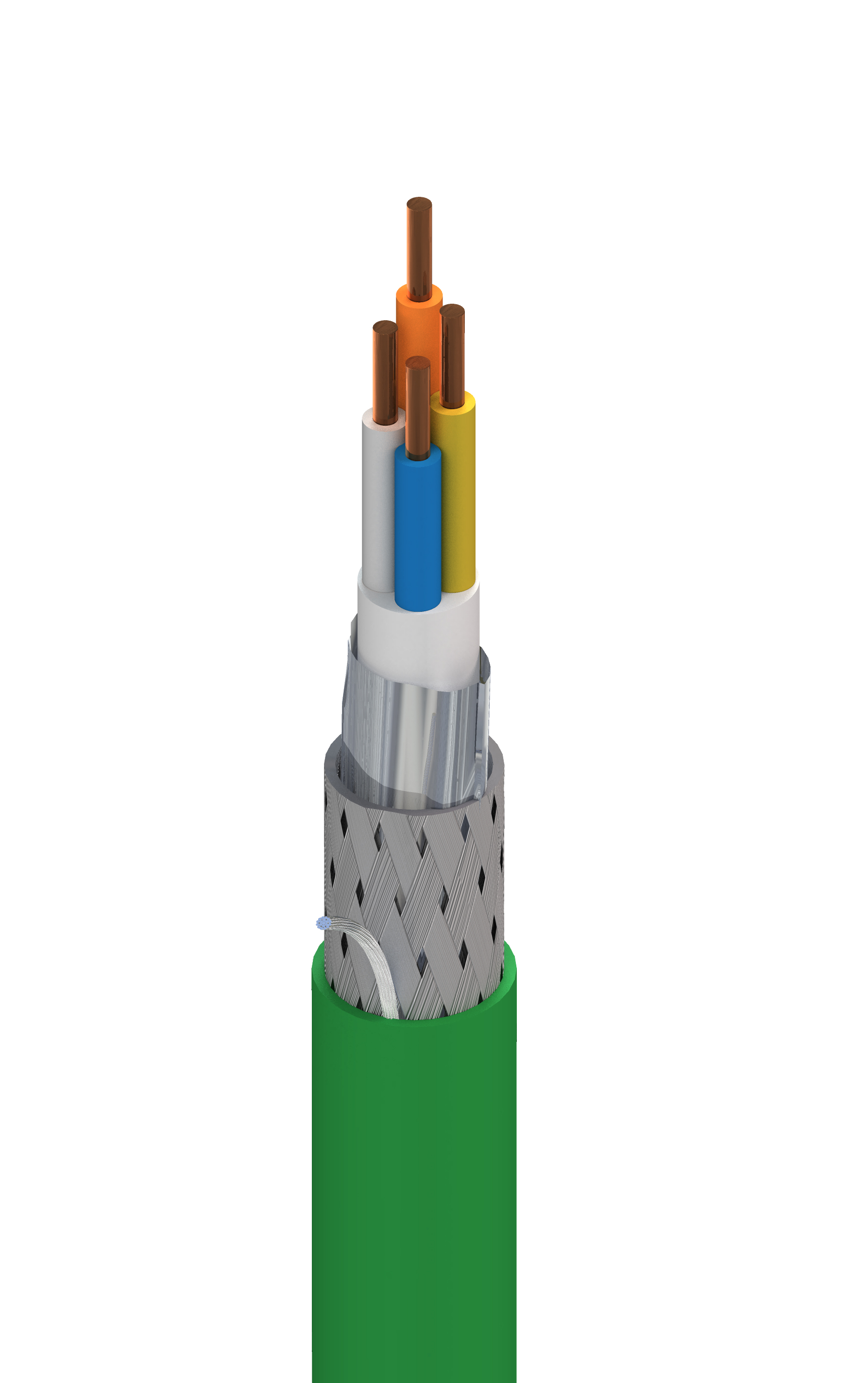

DataTuff® Cat 5e, Quad (2 Pr) #22 Sol BC, PO Ins, OS+TC Brd, PVC Jkt, CMG CMX-Outdoor (Category 5e Cable) – Belden (7960A)

Features & Benefits

• Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
• Superior Electrical Performance: Exceeds Category 5e performance
• Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
• Stable Electricals: 1200 Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
• No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design

Specifications

Product Overview

Suitable Applications	PROFINET, outdoor, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details

Conductor

Element	Size	Stranding	Material	No. of Elements
Quad(s)	22 AWG	Solid	BC – Bare Copper	1

Insulation

Material	Color Code
PO – Polyolefin	White, Blue, Yellow, Orange

Inner Jacket

Material	Nom. Diameter
PE – Polyethylene	0.164 in (4.17 mm)

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.265 in (6.73 mm)	No

Overall Cable Diameter (Nominal)	0.265 in (6.73 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR	Max. Capacitance Unbalance
57 Ohm/km (17 Ohm/1000ft)	150 pF/ft

Delay

Max. Delay	Nom. Velocity of Prop.
552 ns/100m	70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. PSNEXT [dB]	Min. ACR [dB]	Min. ACRF (ELFEXT) [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted) [Ohm]	Max./Min. Fitted Impedance [Ohm]
1	2.1 dB/100m	65.3	62.3	63.2	63.8	60.8	23	100 ± 20.2	105 ±10
4	4.0 dB/100m	56.3	53.3	56.3	51.7	48.7	23	100 ± 14.2	100 ±10
8	5.6 dB/100m	51.8	48.8	46.2	45.7	42.7	23	100 ± 11.3	100 ±10
10	6.3 dB/100m	50.3	47.3	43.9	43.8	40.8	25	100 ± 11.3	100 ±10
16	8.0 dB/100m	47.3	44.3	35.2	39.7	36.7	25	100 ± 11.3	100 ±10
20	9.0 dB/100m	45.8	42.8	36.5	37.7	34.7 Part Numbers Item # Color Putup Type Length UPC/EAN 7960A.00305 Green Reel 305 m 8719605016775 7960A.00610 Green Reel 610 m 8719605016782 7960A 1SW1000 Green, RAL 6018 612825367291 7960A 1SW2000 Green, RAL 6018 612825367307
