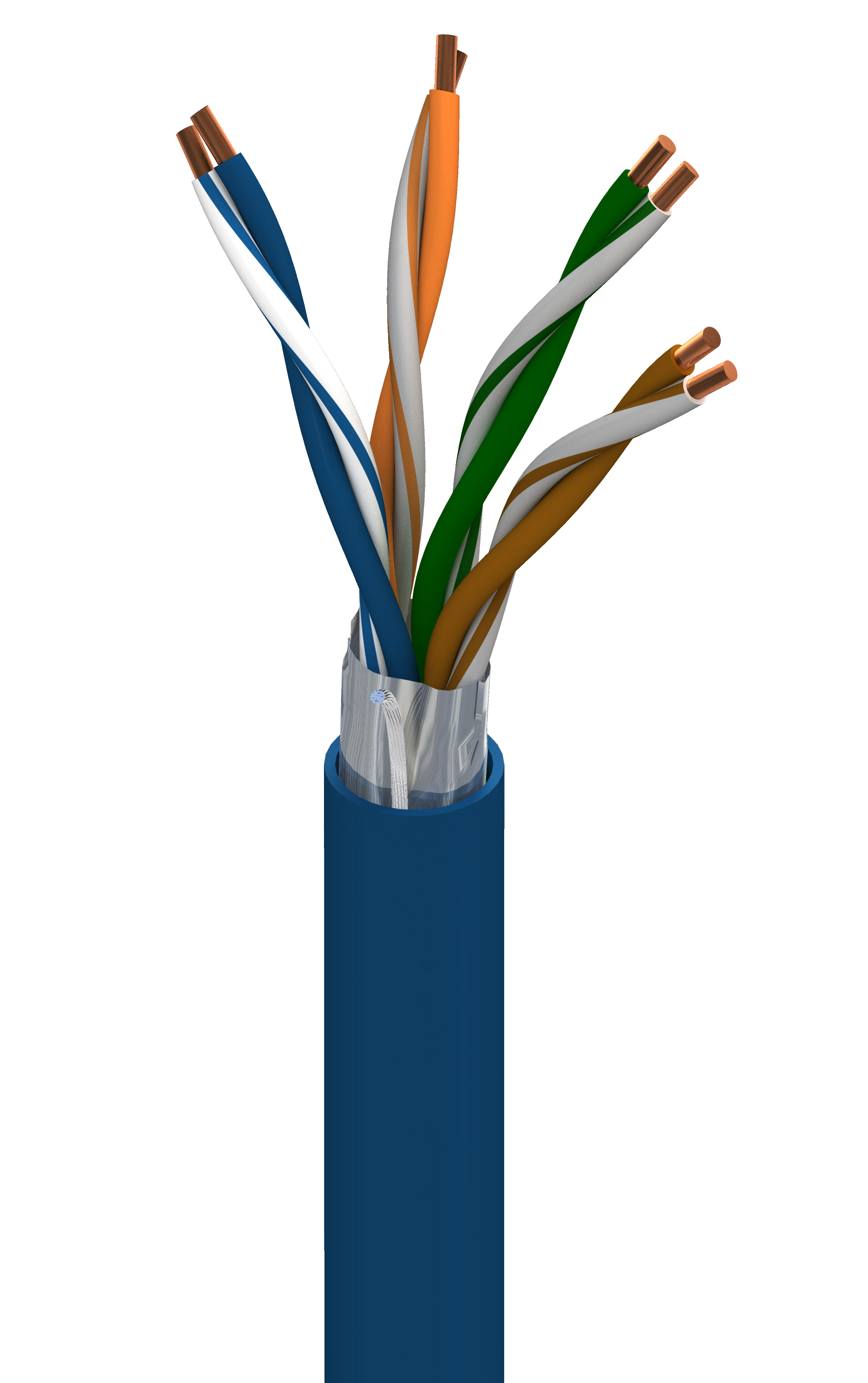

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, FEP Insulation, Overall Beldfoil® Shield, FEP Outer Jacket, CMP
Industrial automation systems are undergoing transformations that include the deployment of industrial Ethernet. Keep your connections strong with Belden’s complete range of high-quality, reliable DataTuff® Industrial Ethernet Cables. Designed specifically for industrial applications, these cables offer consistent and reliable performance in even the harshest environments.
Specifications
Product Overview
|
Suitable Applications |
extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
Physical Characteristics (Overall)
Conductor
| Element | AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|---|
| Pair(s) | 24 | Solid | BC – Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
Insulation
| Element | Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| Pair(s) | FEP – Fluorinated Ethylene Propylene | 0.044 in | 0.011 in |
|
Bonded-Pair |
Yes |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | Blue & White/Blue |
| 2 | Orange & White/Orange |
| 3 | Green & White/Green |
| 4 | Brown & White/Brown |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC – Tinned Copper | 24 |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| FEP – Fluorinated Ethylene Propylene | 0.231 in |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 29.7 Ohm/1000ft | 3.0 % |
Capacitance
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 66 pF/ft | 15 pF/ft |
Delay
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 510 ns/100m | 25 ns/100m | 72% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) |
|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 65.3 dB | 65.3 dB | 63.3 dB | 63.3 dB | 63.8 dB | 60.8 dB | 20 dB | 100 ± 12 Ohm |
| 4 MHz | 4 dB/100m | 56.3 dB | 56.3 dB | 52.3 dB | 52.3 dB | 51.7 dB | 48.7 dB | 23.6 dB | 100 ± 12 Ohm |
|
8 MHz
