Category 6+ Cable, 4 Bonded-Pairs, U/UTP, LSZH Jkt, Indoor (Category 6 Cable) – Belden (7834BNC)

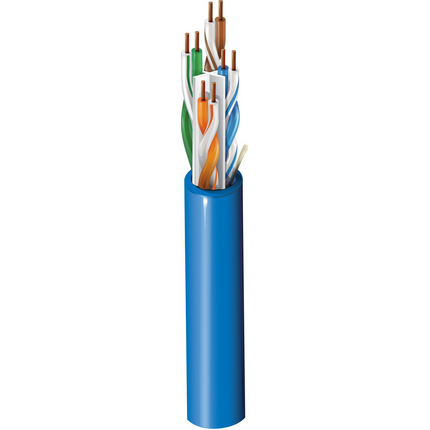

Category 6+ Premise Horizontal Cable (650MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, LSZH Jacket, Indoor
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.
Call for Price
Features & Benefits
- Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
- Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
- Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
- Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
- Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders
Specifications
Product Overview
|
Suitable Applications |
Horizontal and building backbone cable; Support current and future Category 6 and 5e applications, such as: 1000Base – T (Gigabit Ethernet), 100 Base – T, 10Base – T, FDDI, ATM |
|---|
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 AWG | Solid | BC – Bare Copper | 4 |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE – Polyethylene | 1.15 mm (0.0453 in) | Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip |
|
Bonded-Pair |
Yes |
|---|
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 6.3 mm (0.25 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 95 Ohm/km | 56 pF/m (17 pF/ft) | 160 pF/100m | 100 Ohm |
Delay
| Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|
| 40 ns/100m | 67% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 | 80.3 | 78.3 | 78.3 | 76.3 | 74 | 71 | 23 | 40 | 35 |
| 4 | 3.7 | 71.3 | 69.3 | 67.6 | 65.6 | 62 | 59 | 26 | 34 | 23 |
| 10 | 5.7 | 65.3 | 63.3 | 59.6 | 57.6 | 54 | 51 | 28 | 30 | 15 |
| 16 | 7.2 | 62.2 | 60.2 | 55.0 | 53.0 | 49.9 | 46.9 | 28 | 28 | 10.9 |
| 31.3 | 10.2 | 57.9 | 55.9 | 47.7 | 45.7 | 44.1 | 41.1 | 26.6 | 25.1 | 5.1 |
| 62.5 | 14.6 | 53.4 | 51.4 | 38.8 | 36.8 | 38.1 | 35.1 | 24.5 | 22 | |
| 100 | 18.8 | 50.3 | 48.3 | 31.5 | 29.5 | 34 | 31 | 23.1 | 20 |
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| 7834BNC 006A1000 | Blue | Reel in Box | 1,000 ft |
| 7834BNC 006U1000 | Blue | Unreel | 1,000 ft |
| 7834BNC 008U1000 | Gray | Unreel | 1,000 ft |
| 7834BNC 008A1000 | Gray | Reel in Box | 1,000 ft |
