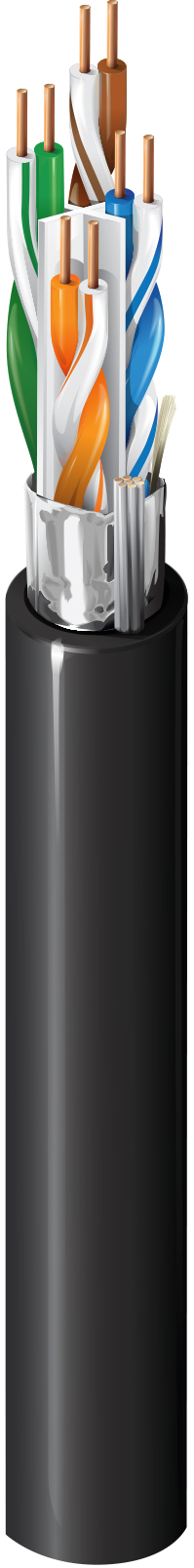

Category 6 Indoor/Outdoor Cable, 4 Pair, F/UTP, CMR/CMX (Category 6 Cable) – Belden (2149A)

Call for Price

Category 6+ Premise Horizontal Cable (350MHz), Indoor/Outdoor, 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP – Foil Shielded, Riser-CMR/CMX Outdoor, PVC Jacket
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Compare
SKU: BELDEN-2149A Categories: , , ,
Belden

Description

Features & Benefits

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
  • Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders

Specifications

Product Overview

Suitable Applications

Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE, Noisy Environments

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4

Insulation

Material Color Code
PO+FEP – Polyolefin + Fluorinated Ethylene Propylene White/Blue Stripe and Blue, White/Orange Stripe and Orange, White/Green Stripe and Green, White/Brown Stripe and Brown

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Polyester + Bi-Laminate (Alum+Poly) 100% 24 AWG (Solid) TC

Outer Jacket

Separator Material Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC – Polyvinyl Chloride 0.296 in (7.52 mm) No

Overall Cable Diameter (Nominal)

0.296 in (7.52 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 68%
High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
0.772 1.8 dB/100m 77.0 77.0 75.2 76.2 73.0 70.0 19.4 100 +/- 15 40.0 37.2
1 2.0 dB/100m 75.3 75.3 73.3 74.3 70.8 67.8 20.0 100 +/- 15 40.0 35.0
4 3.7 dB/100m 66.3 66.3 62.6 63.6 58.8 55.8 23.0 100 +/- 15 40.0 23.0
8 5.2 dB/100m 61.8 61.8 56.6 57.6 52.7 49.7 24.5 100 +/- 15 40.0 16.9
10 5.8 dB/100m 60.3 60.3 54.5 55.5 50.8 47.8 25.0
Item # Color UPC
2149A 0101000 Black 612825379478
