Category 5e Cable

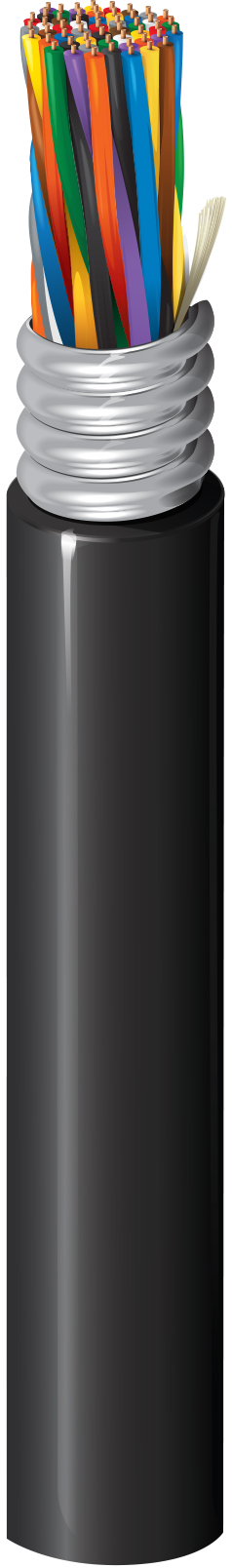

Category 5e Indoor/Outdoor Cable, 25 Pair, F/UTP, OSP/CM-LS, LSZH, CAT Armor (Category 5e Cable) – Belden (2139A)

Call for Price

Category 5e Premise Backbone Cable (100MHz), Indoor/Outdoor OSP/CM-LS, 25 Pair, 24 AWG Solid Bare Copper Conductors, U/UTP, Gel-Filled, Corrugated Aluminum Tape Armor, UV Resistant Flame Retardant Haloarrest® LSZH Outer Jacket
Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels. Our top-of-line 1200 Series cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible.

Compare
SKU: BELDEN-2139A Categories: , , ,
Belden

Description

Features & Benefits

  • Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
  • Superior Electrical Performance: Exceeds Category 5e performance
  • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
  • Stable Electricals: 1200 Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
  • No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design

Specifications

Product Overview

Suitable Applications

OSP-Outdoor, Indoor/Outdoor, Premise Backbone Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments

Construction Details

Conductor

Size Stranding Material No. of Pairs
24 Solid BC – Bare Copper 25

Insulation

Material Color Code
PO – Polyolefin Western Electric

Inner Jacket

Material Nom. Diameter Ripcord
PE – Polyethylene 0.51 in (13 mm) Yes

Armor

Armor Type & Material Armor Thickness
CAT – Corrugated Aluminum Tape .008 in (0.20 mm)

Outer Jacket

Material Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.730 in (18.5 mm) Yes

Overall Cable Diameter (Nominal)

0.730 in (18.5 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 68%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance
1 2.0 dB/100m 62.3 20.0 100 ± 15%
4 4.1 dB/100m 53.3 23.0 100 ± 15%
8 5.8 dB/100m 48.8 24.5 100 ± 15%
10 6.5 dB/100m 47.3 25.0 100 ± 15%
16 8.2 dB/100m 44.3 25.0 100 ± 15%
20 9.3 dB/100m 42.8 25.0 100 ± 15%
25 10.4 dB/100m 41.3 24.3 100 ± 15%
31.25 11.7 dB/100m 39.9 23.6 100 ± 15%
62.5 17.0 dB/100m 35.4 21.5 100 ± 15%
100 22.0 dB/100m 32.3 20.1 100 ± 15%

Voltage

UL Voltage Rating
300 V (CM)

Mechanical Characteristics

Part Numbers

Item # Color UPC
2139A 0101000 Black 612825377870

Belden 1200 Cable Performance Warranty

Brand

Belden
