CAT6+ Patch Bonded-Pair, 4pr, UTP, PVC Jkt, CMR (Category 6 Cable) – Belden (1875GB)

Call for Price

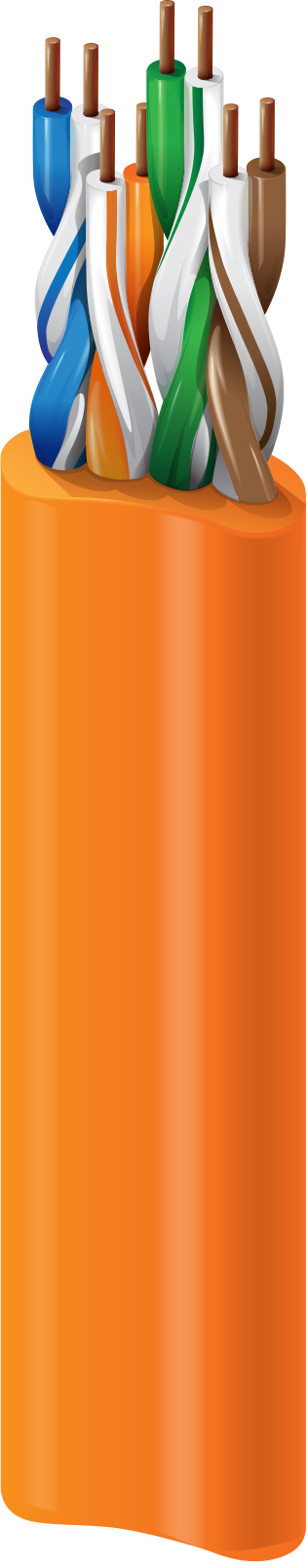

CAT6+ (350MHz), 4-Bonded-pairs, U/UTP-unshielded, Riser-CMR, Premise Patch cable, 24 AWG Bonded stranded (7×32) tinned copper conductor, polyolefin insulation, PVC jacket
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Compare
SKU: BELDEN-1875GB Categories: , , ,
Belden

Description

Features & Benefits

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
  • Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders

Specifications

Product Overview

Suitable Applications

Premise Patch Cable Designed for Attenuation Stability in High Humidity Environments, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, For T568-B Wiring

Physical Characteristics (Overall)

Conductor

AWG Stranding Material No. of Pairs
24 7×32 TC – Tinned Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation

Material
PO – Polyolefin

Bonded-Pair

Yes

Color Chart

Number Color
1 White/Brown Stripe & Brown
2 White/Blue Stripe & Blue
3 White/Green Stripe & Green
4 White/Orange Stripe & Orange

Outer Jacket

Material Nominal Diameter Ripcord
PVC – Polyvinyl Chloride 0.365 x 0.165 in No

Electrical Characteristics

Conductor DCR

Max. Conductor DCR Max. DCR Unbalance
90 Ohm/km 3 %

Capacitance

Max. Capacitance Unbalance Nom.Mutual Capacitance
49.2 pF/100m 15 pF/ft

Delay

Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 25 ns/100m 70%
High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) Max./Min. Fitted Impedance
1 MHz 2.0 dB/100m 74.3 dB 72.3 dB 70.3 dB 70.3 dB 67.8 dB 64.8 dB 20.0 dB 100 ± 12 Ohm 100 ± 15 Ohm
4 MHz 4.1 dB/100m 65.3 dB 63.3 dB 59.2 dB 59.2 dB 55.7 dB 52.8 dB 23.0 dB 100 ± 12 Ohm 100 ± 15 Ohm
8 MHz 5.8 dB/100m 60.3 dB 58.8 dB 53.0 dB 53.0 dB 49.7 dB 46.7 dB 24.5 dB 100 ± 12 Ohm 100 ± 15 Ohm
10 MHz 6.5 dB/100m 59.3 dB 57.3 dB 51.0 dB 51.0 dB 47.8 dB 44.8 dB 25.0 dB 100 ± 12 Ohm 100 ± 15 Ohm

Part Numbers

Item # Color Put-Up Type Length UPC
1875GB 0101000 Black Reel 1,000 ft 612825125754
1875GB 0061000 Blue Reel 1,000 ft 612825125723
1875GB 006A1000 Blue Reel-in-Box 1,000 ft 612825125716
1875GB F2V1000 Gray Reel 1,000 ft 612825125662
1875GB F6H1000 Gray Reel 1,000 ft 612825125679
1875GB 0051000 Green Reel 1,000 ft 612825125709
1875GB 005A1000 Green Reel-in-Box 1,000 ft 612825125693
1875GB 007A1000 Purple Reel-in-Box 1,000 ft 612825125730
1875GB 0091000 White Reel 1,000 ft 612825125747
1875GB 0041000 Yellow Reel 1,000 ft 612825125686
Show All Parts Number
