Category 6+ Cable, 4 Bonded-Pairs, U/UTP, CMP (Category 6 Cable) – Belden (1874A)

Call for Price

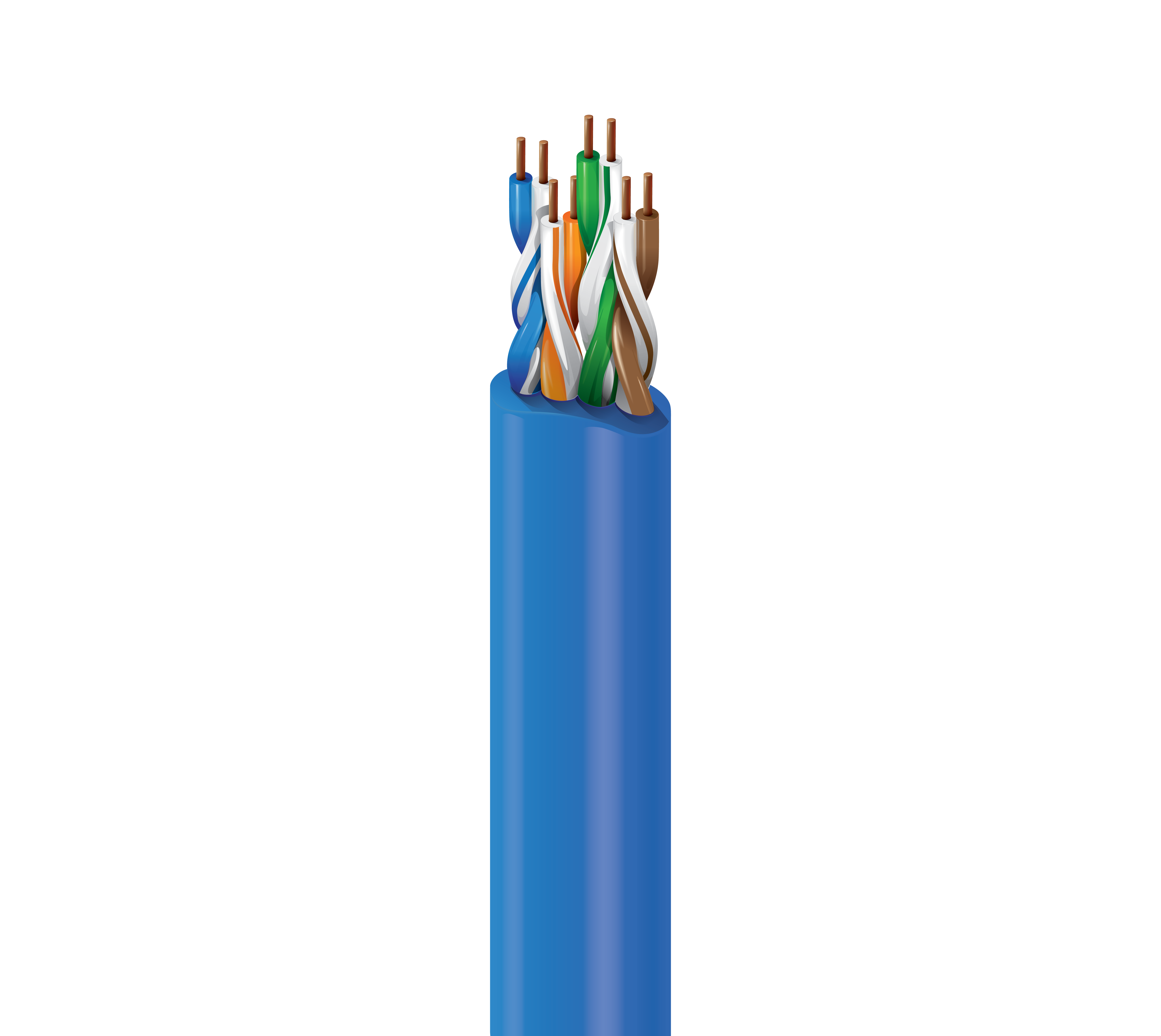

Category 6+ Premise Horizontal Cable (350MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
Belden offers several Category 6 performance levels, including our REVConnect 3600 System cable with premium performance offering significant headroom, and our REVConnect 2400 System cable. Every level exceeds TIA-568-C.2 performance and is produced with Belden’s superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Compare
SKU: BELDEN-1874A Categories: , , ,
Belden

Description

Features & Benefits

  • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
  • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
  • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
  • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
  • Easy, Mess-free Outdoor Installations: Dry Core Outside Plant and Indoor/Outdoor Plenum cables contain no inconvenient water-blocking gels, tapes, or powders

Specifications

Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4

Insulation

Material Color Code
FEP – Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Jacket

Material Material Trade Name Nom. Diameter Ripcord
PVC – Polyvinyl Chloride Flamarrest® 0.365 x 0.165 in Yes

Overall Cable Diameter (Nominal)

0.365 x 0.165 in

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
75 Ohm/km (23 Ohm/1000ft) 49 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 25 ns/100m 72%
High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 1.9 dB/100m 75.3 75.3 73.4 73.4 67.8 64.8 20.0 100 ± 12 100 ± 15
4 3.7 dB/100m 66.3 66.3 62.6 62.6 55.7 52.8 23.0 100 ± 12 100 ± 15
8 5.3 dB/100m 61.8 61.8 56.5 56.5 49.7 46.7 24.5 100 ± 12 100 ± 15
10 5.9 dB/100m 60.3 60.3 54.4 54.4 47.8 44.8 25.0 100 ± 12 100 ± 15
16 7.5 dB/100m 57.2 57.2 49.7 49.7 43.7 40.7 25.0 100 ± 12 100 ± 8
20 8.4 dB/100m 55.8 55.8 47.3 47.3 41.8 38.8 25.0 100 ± 12

Part Numbers

Item # Color Putup Type Length UPC Footnote
1874A 0101000 Black Reel 1,000 ft 612825125631 C
1874A D151000 Blue Reel 1,000 ft 612825125488 C
1874A D15A1000 Blue Reel-in-Box 1,000 ft 612825125471
1874A F6H1000 Gray Reel 1,000 ft 612825125501 C
1874A F6HA1000 Gray Reel-in-Box 1,000 ft 612825125495
1874A 005A1000 Green Reel-in-Box 1,000 ft 612825125570
1874A 8771000 Natural Reel 1,000 ft 612825125655 C
1874A 877A1000 Natural Reel-in-Box 1,000 ft 612825125648
1874A 003A1000 Orange Reel-in-Box 1,000 ft 612825125532
1874A 0071000 Purple Reel 1,000 ft 612825125600 C
1874A 007A1000 Purple Reel-in-Box 1,000 ft 612825125594
1874A 002A1000 Red Reel-in-Box 1,000 ft 612825125518
1874A 0091000 White Reel 1,000 ft 612825125624 C
1874A 009A1000 White Reel-in-Box 1,000 ft 612825125617
1874A 004A1000 Yellow Reel-in-Box 1,000 ft 612825125556
