Category 5e Cable

Category 5e+ Patch Cable, 4 Bonded-Pairs, U/UTP, CM (Category 5e Cable) – Belden (1752A)

Call for Price

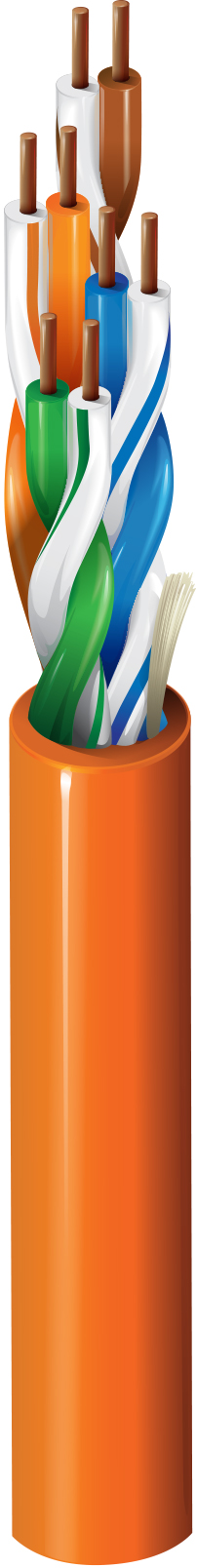

Category 5e+ Premise Patch Cable (350MHz), 4 Bonded-Pairs, 24 AWG Stranded (7×32) Tinned Copper Conductors, U/UTP, CM, PVC Jacket
Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels. Our top-of-line 1200 Series cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible.

Compare
SKU: BELDEN-1752A Categories: , , ,
Belden

Description

Features & Benefits

  • Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
  • Superior Electrical Performance: Exceeds Category 5e performance
  • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
  • Stable Electricals: 1200 Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
  • No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design

Specifications

Product Overview

Suitable Applications

Premise Patch Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size Stranding Material No. of Pairs
24 AWG 7×32 TC – Tinned Copper 4

Insulation

Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Jacket

Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.220 in (5.59 mm) No

Overall Cable Diameter (Nominal)

0.220 in (5.59 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
90 Ohm/km (27 Ohm/1000ft) 160 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 25 ns/100m 70%

High Frequency

Part Numbers

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.4 dB/100m 65.3 65.3 63.8 60.8 20.0 100 ± 12 105 ± 10
4 4.8 dB/100m 56.3 56.3 51.7 48.7 23.0 100 ± 12 100 ± 10
8 6.8 dB/100m 51.8 51.8 45.7 42.7 24.5 100 ± 12 100 ± 10
10 7.7 dB/100m 50.3 50.3 43.8 40.8 25.0 100 ± 12 100 ± 10
16 9.8 dB/100m 47.3 47.3 39.7 36.7 25.0 100 ± 12 100 ± 10
20 11.0 dB/100m 45.8 45.8 37.7 34.7 25.0 100 ± 12 100 ± 10
25 12.4 dB/100m 44.3 44.3 35.8 32.8 19.0 100 ± 15 100 ± 10
31.25 13.9 dB/100m 42.9 42.9 33.9
Item # Color Putup Type Length UPC Footnote
1752A 0101000 Black Reel 1,000 ft 612825122210 C
1752A 010U1000 Black UnReel 1,000 ft 612825122203
1752A 0061000 Blue Reel 1,000 ft 612825122173 C
1752A 006U1000 Blue UnReel 1,000 ft 612825122166
1752A F2V1000 Gray Reel 1,000 ft 612825122074 C
1752A F2VU1000 Gray UnReel 1,000 ft 612825122067
1752A 0051000 Green Reel 1,000 ft 612825122159 C
1752A 005U1000 Green UnReel 1,000 ft 612825122142
1752A 0031000 Orange Reel 1,000 ft 612825122111 C
1752A 003U1000 Orange UnReel 1,000 ft 612825122104
1752A 007U1000 Purple UnReel 1,000 ft 612825122180
1752A 0021000 Red Reel 1,000 ft 612825122098 C
1752A 002U1000 Red UnReel 1,000 ft 612825122081
1752A 0041000 Yellow Reel 1,000 ft 612825122135 C
1752A 004U1000 Yellow UnReel 1,000 ft 612825122128
Show All Parts Number

Brand

Belden
