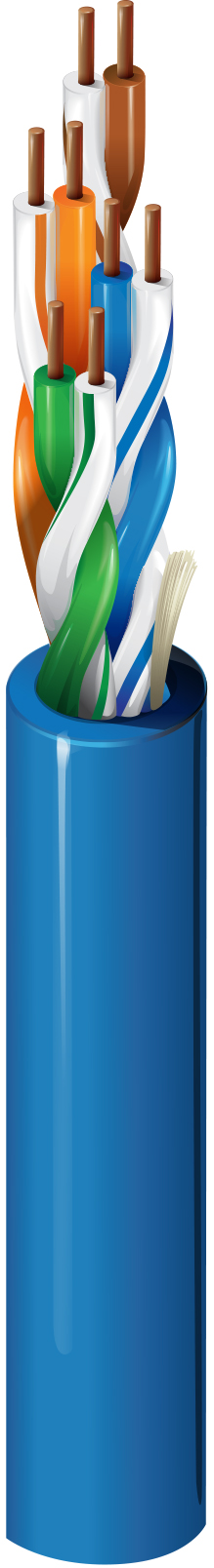

Category 5E+ Cable, 4 Bonded-Pairs, U/UTP, CMR (Category 5e Cable) – Belden (1700A)

Description

Features & Benefits

• Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
• Superior Electrical Performance: Exceeds Category 5e performance
• Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
• Stable Electricals: 1200 Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
• No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design

Specifications

Product Overview

Suitable Applications	Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size	Stranding	Material	No. of Pairs
24 AWG	Solid	BC – Bare Copper	4

Insulation

Material	Color Code
PO – Polyolefin	White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair	Yes

Outer Jacket

Material	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.202 in (5.13 mm)	Yes

Overall Cable Diameter (Nominal)	0.202 in (5.13 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR	Max. Capacitance Unbalance
90 Ohm/km (27 Ohm/1000ft)	66 pF/100m

Delay

Frequency	Max. Delay	Max. Delay Skew	Nom. Velocity of Prop.
100 MHz	537.6 ns/100m	25 ns/100m	70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. PSNEXT [dB]	Min. PSACR [dB]	Min. PSACRF (PSELFEXT) [dB]	Min. RL (Return Loss) [dB]	Max./Min. Input Impedance (unFitted) [Ohm]	Max./Min. Fitted Impedance [Ohm]	Min. TCL [dB]	Min. ELTCTL [dB]
1	2.0 dB/100m	69.3	67.3	65.8	20.0	100 ± 12	105 ± 10	40.0	35.0
4	4.0 dB/100m	60.3	56.3	53.8	23.0	100 ± 12	100 ± 10	40.0	23.0
8	5.7 dB/100m	55.8	50.1	47.7	24.5	100 ± 12	100 ± 10	40.0	16.9
10	6.4 dB/100m	54.3	47.9	45.8	25.0	100 ± 12	100 ± 10	40.0	15.0
16	8.1 dB/100m	51.2	43.1	41.7	25.0	100 ± 12	100 ± 10	38.0	10.9
20	9.1 dB/100m	49.8	40.7	39.8	25.0	100 ± 12	100 ± 10	37.0	9.0
25	10.2 dB/100m	48.3	38.2	37.8	25.0	100 ± 15	100 ± 10 Part Numbers Item # Color Putup Type Length UPC/EAN Footnote 1700A 0101000 Black Reel 1,000 ft 612825121589 C 1700A 010U1000 Black UnReel 1,000 ft 612825121572 1700A 006U1000 Blue UnReel 1,000 ft 612825121503 1700A 0061640 Blue Reel 1,640 ft 612825121527 C 1700A 0063000 Blue Reel 3,000 ft C 1700A.00305 Gray Reel 305 m 8719605003881 1700A 008U1000 Gray UnReel 1,000 ft 612825121534 1700A F2V1000 Gray Reel 1,000 ft 612825121398 C 1700A F2VU1000 Gray UnReel 1,000 ft 612825121381 1700A F2V3000 Gray Reel 3,000 ft 612825121404 C 1700A 0051000 Green Reel 1,000 ft 612825121497 C 1700A 005U1000 Green UnReel 1,000 ft 612825121480 1700A 0031000 Orange Reel 1,000 ft 612825121459 C 1700A 003U1000 Orange UnReel 1,000 ft 612825121442 1700A B021000 Purple Reel 1,000 ft 612825121374 C 1700A B02U1000 Purple UnReel 1,000 ft 612825121367 1700A 0021000 Red Reel 1,000 ft 612825121428 C 1700A 002U1000 Red UnReel 1,000 ft 612825121411 1700A 0023000 Red Reel 3,000 ft 612825121435 C 1700A 0091000 White Reel 1,000 ft 612825121558 C 1700A 009U1000 White UnReel 1,000 ft 612825121541 C 1700A 0093000 White Reel 3,000 ft 612825121565 C 1700A 004U1000 Yellow UnReel 1,000 ft 612825121466 Show All Parts Number Show Less
