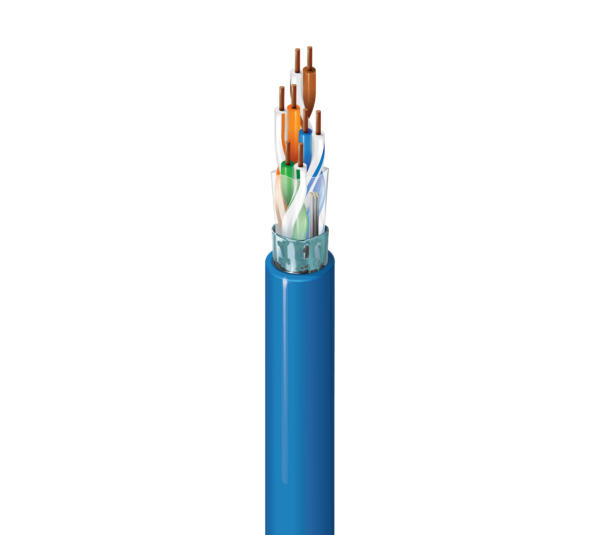

Category 5e Cable, 4 Pair, F/UTP, CMP (Category 5e Cable) – Belden (1533P)

Call for Price

Category 5e Premise Horizontal Cable (100MHz), 4 Pair, 24 AWG Solid Bare Copper Conductors, F/UTP – Foil Shielded, Plenum-CMP, Flamarrest® PVC-LS Jacket
Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels. Our top-of-line 1200 Series cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible.

Compare
SKU: BELDEN-1533P Categories: , , ,
Belden

Description

Features & Benefits

  • Breadth of Portfolio: Product family includes UTP, F/UTP, Plenum, Riser, LSZH, OSP, Commercial and Industrial cables
  • Superior Electrical Performance: Exceeds Category 5e performance
  • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
  • Stable Electricals: 1200 Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
  • No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design

Specifications

Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE , Noisy Environments

Construction Details

Conductor

Size Stranding Material No. of Pairs
24 AWG Solid BC – Bare Copper 4

Insulation

Material Color Code
FEP – Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Outer Shield

Shield Type Material Coverage Drainwire Type
Tape Polyester + Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC

Outer Jacket

Material Material Trade Name Nom. Diameter Ripcord
PVC – Polyvinyl Chloride Flamarrest® 0.235 in (5.97 mm) No

Overall Cable Diameter (Nominal)

0.235 in (5.97 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 70%
High Frequency

Part Numbers

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 62.3 63.3 60.3 63.8 60.8 20.0 100 ± 15 100 ± 15
4 4.1 dB/100m 56.3 53.3 52.2 49.2 51.8 48.8 23.0 100 ± 15 100 ± 15
8 5.8 dB/100m 51.8 48.8 46.0 43.0 45.7 42.7 24.5 100 ± 15 100 ± 15
10 6.5 dB/100m 50.3 47.3 43.8 40.8 43.8 40.8 25.0 100 ± 15 100 ± 15
16 8.2 dB/100m 47.2 44.2 39.0 36.0 39.7 36.7 25.0 100 ± 15 100 ± 15
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.8
Item # Color Putup Type Length UPC Footnote
1533P 0101000 Black Reel 1,000 ft 612825117414 C
1533P 010A1000 Black Reel-in-Box 1,000 ft 612825117407
1533P D151000 Blue Reel 1,000 ft 612825117292 C
1533P D15A1000 Blue Reel-in-Box 1,000 ft 612825117285
1533P 0081000 Gray Reel 1,000 ft 612825117391 C
1533P 008A1000 Gray Reel-in-Box 1,000 ft 612825117384
1533P 0051000 Green Reel 1,000 ft 612825117377 C
1533P 005A1000 Green Reel-in-Box 1,000 ft 612825117360
1533P 8771000 Natural Reel 1,000 ft 612825117438 C
1533P 877A1000 Natural Reel-in-Box 1,000 ft 612825117421
1533P 0031000 Orange Reel 1,000 ft 612825117339 C
1533P 003A1000 Orange Reel-in-Box 1,000 ft 612825117322
1533P 0021000 Red Reel 1,000 ft 612825117315 C
1533P 002A1000 Red Reel-in-Box 1,000 ft 612825117308
1533P 0041000 Yellow Reel 1,000 ft 612825117353 C
1533P 004A1000 Yellow Reel-in-Box 1,000 ft 612825117346
Show All Parts Number
