CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC PVC upjacketed (Category 6A Cable) – Belden (1303E)

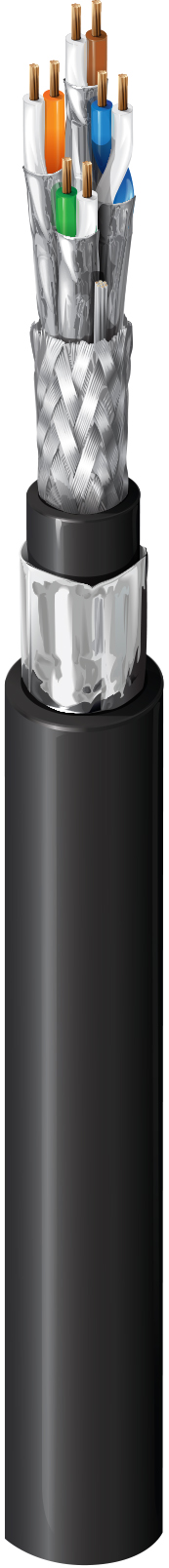

CATSNAKE Category 6A Cable, 4 Pair, S/FTP, PVC PVC upjacketed
Our Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry’s gold standard for performance, while, Belden’s newest cable, 10GXW, is the industry’s smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.
Call for Price
Features & Benefits
- Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
- Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
- Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
- Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
- Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables
Specifications
Product Overview
|
Suitable Applications |
Field deployable CAT6a patch horizontal and building backbone cable; AVB, Dante, CobraNEt, eSnake, Ethersound, Digital audio over Ethernet; Support current and future Category 6A and 6 applications, such as: 10GBase – T(10 Gigabit Ethernet), 1000 Base – T (Gigabit Ethernet), 100 Base – T, 10 Base – T, FDDI, ATM; Compatible connectors Belden R301601 000S1 (T568A) and R301602 000S1 (T568B) |
|---|
Construction Details
Conductor
| Element | Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| Individual Shielded Pair | 24 AWG | 7×32 | BC – Bare Copper | 4 | 8 |
Insulation
| Element | Material | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| Individual Shielded Pair | PE – Polyethylene (Foam) | 1.4 mm (0.055 in) | White & Blue, White & Orange, White & Green, White & Brown |
Cable Core
| Description |
|---|
| 4 shielded pairs twisted together |
Inner Shield
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) | 100% |
|
Table Notes |
Aluminum facing outside |
|---|
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Braid | Tinned Copper (TC) | 80% | 26 AWG (7×34) TC |
Outer Jacket
| Layer | Separator | Material | Nom. Diameter |
|---|---|---|---|
| 1 | PVC – Polyvinyl Chloride | 7.2 mm (0.28 in) | |
| 2 | non-Woven Tape | PVC – Polyvinyl Chloride | 8.7 mm (0.34 in) |
|
Table Notes |
Matte Finish, Rugged Sheath |
|---|---|
|
Overall Cable Diameter (Nominal) |
8.7 mm (0.34 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 95 Ohm/km | 56 pF/m (17 pF/ft) | 160 pF/100m | 100 Ohm |
Delay
| Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|
| 25 ns/100m | 77% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. PSANEXT [dB] | Min. PSAACRF [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.5 dB/100m | 75.3 | 72.3 | 72.8 | 69.8 | 68 | 65 | 20 | 67 | 67 | 40 | 35 | ||||||||||||||||||||||
| 4 | 4.6 dB/100m | 66.3 | 63.3 | 61.7 |
| Item # | Color | Putup Type | Length | UPC/EAN |
|---|---|---|---|---|
| 1303E.00305 | Black | Reel | 305 m | 8719605000941 |
| 1303E 010500 | Black | Reel | 500 ft | 612825381839 |
| 1303E.00500 | Black | Reel | 500 m | 8719605000958 |
| 1303E 0101000 | Black | Reel | 1,000 ft | 612825381822 |
| 1303E 0101640 | Black | Reel | 1,640 ft | 612825381815 |
