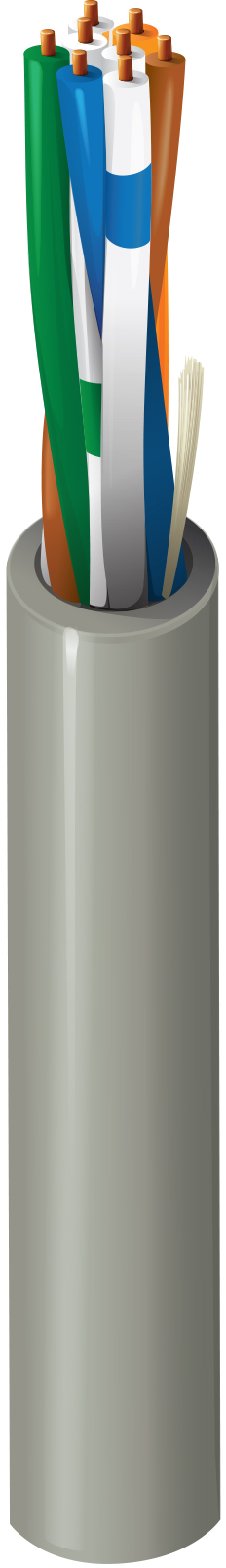

CAT3 Horizontal, 4pr, UTP, LS-PVC Jkt, CMP (Category 6A Cable) – Belden (1245A2)

Call for Price

CAT3, 4-Pair, U/UTP-unshielded, Plenum-CMP, Premise Horizontal cable, 24 AWG solid bare copper conductors, LS-PVC insulation, LS-PVC jacket
Our Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry’s gold standard for performance, while, Belden’s newest cable, 10GXW, is the industry’s smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.

Compare
SKU: BELDEN-1245A2 Categories: , , ,
Belden

Description

Features & Benefits

  • Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
  • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
  • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
  • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
  • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

Specifications

Product Overview

Suitable Applications

802.3 10BaseT, 100BaseT4

Physical Characteristics (Overall)

Conductor

AWG Stranding Material No. of Pairs
24 Solid BC – Bare Copper 4

Conductor Count

8

Total Number of Pairs

4

Insulation

Material
PVC – Polyvinyl Chloride

Bonded-Pair

N/A

Color Chart

Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown

Outer Jacket

Material Material Trade Name Nominal Diameter Ripcord
PVC – Polyvinyl Chloride Flamarrest® 0.157 in No

Electrical Characteristics

Conductor DCR

Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 5 %

Capacitance

Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 19 pF/ft

Delay

Frequency [MHz] Max. Delay Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
100 MHz 537.6 ns/100m 45 ns/100m 1.5 ns/ft 61%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. SRL (Structural Return Loss) Max./Min. Fitted Impedance
1 MHz 2.6 dB/100m 41.0 dB 12.0 dB 100 ± 15 Ohm
4 MHz 5.6 dB/100m 32.0 dB 12.0 dB 100 ± 15 Ohm
8 MHz 8.5 dB/100m 27.0 dB 12.0 dB 100 ± 15 Ohm
10 MHz 9.7 dB/100m 26.0 dB 12.0 dB 100 ± 15 Ohm
16 MHz 13.1 dB/100m 23.0 dB 10.0 dB 100 ± 15 Ohm

Voltage

UL Voltage Rating
300 V RMS

Temperature Range

Part Numbers

Installation Temperature Range

0°C To +50°C

UL Temp Rating

60°C

Storage Temperature Range

-20°C To +60°C

Item # Color Put-Up Type Length UPC
1245A2 009U1000 White UnReel 1,000 ft 612825109761
