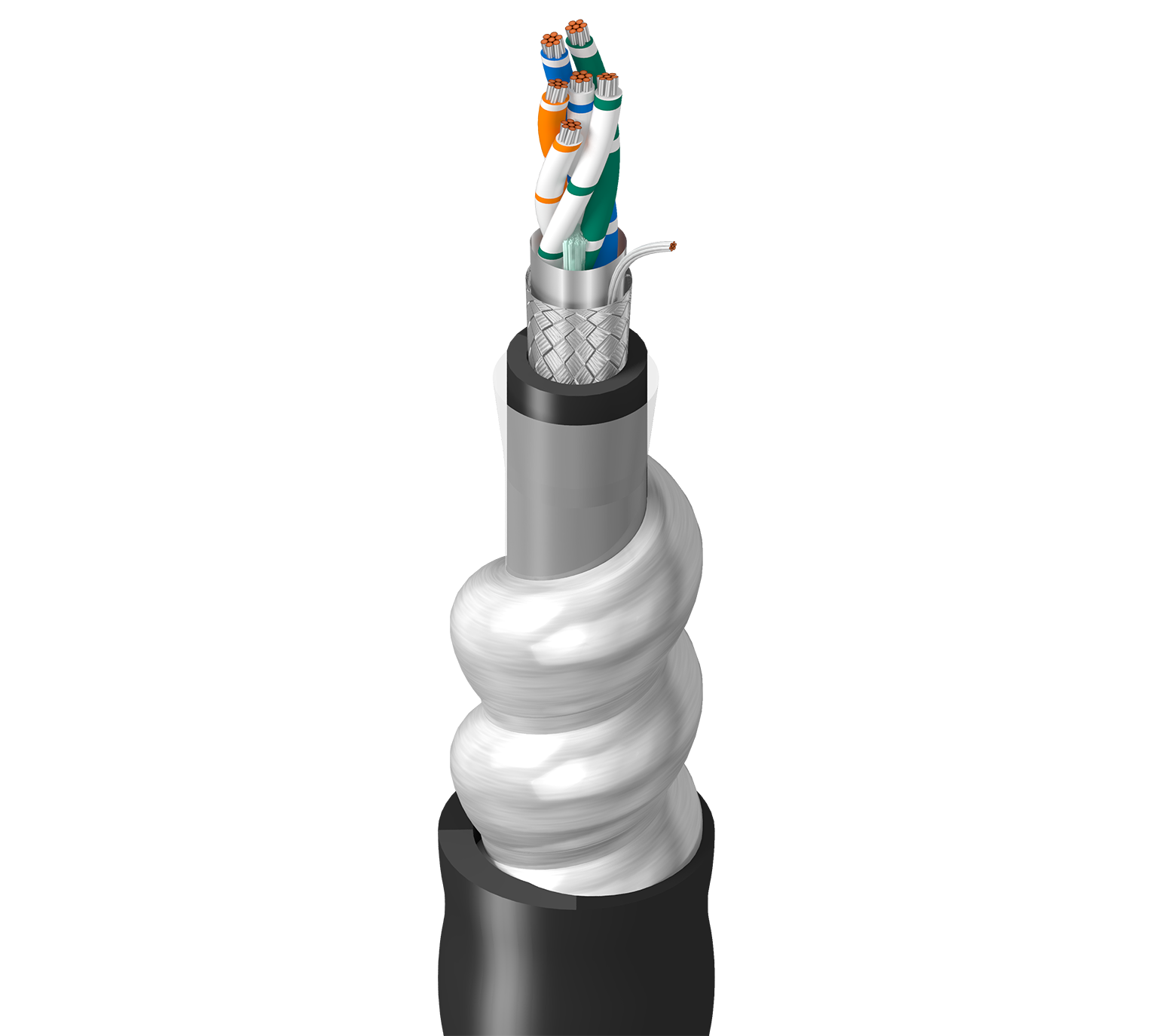

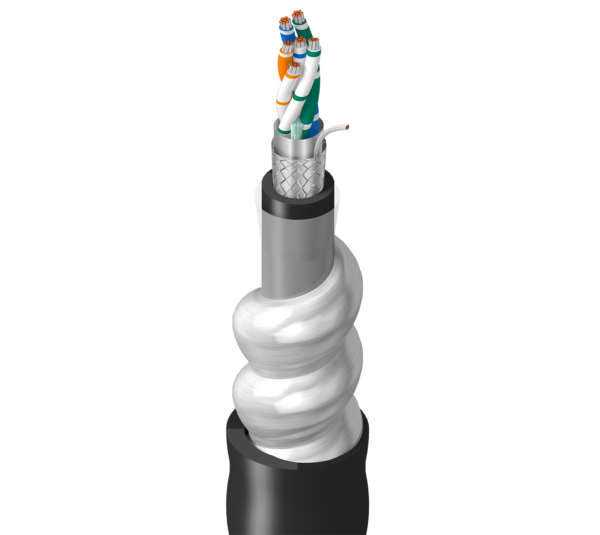

RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, AIA Armor, PVC Jkt, CMG, PLTC (Category 6A Cable) – Belden (123108A)

Features & Benefits

• Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
• Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
• Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
• Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
• Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

Specifications

Product Overview

Suitable Applications	exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details

Conductor

Element	No. of Elements	Size	Stranding	Material
Pair(s)	3	22 AWG	7×30	TC – Tinned Copper

Insulation

Element	Material	Nom. Thickness	Color Code	Notes
Pair(s)	PE – Polyethylene (Foam)	0.023 in (0.58 mm)	White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe	HDPE

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	22 AWG (7×30) TC
Braid	Tinned Copper (TC)	65%

Inner Jacket

Material	Nom. Diameter
PVC – Polyvinyl Chloride	0.374 in (9.50 mm)

Armor

Armor Type & Material
AIA – Aluminum Interlock Armor

Outer Jacket

Material	Nom. Thickness	Nom. Diameter
PVC – Polyvinyl Chloride	0.050 in (1.3 mm)	0.723 in (18.4 mm)

Overall Cable Diameter (Nominal)	0.723 in (18.4 mm)

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Characteristic Impedence	Nom. Velocity of Prop.	Max. Current
Pair(s)	14.7 Ohm/1000ft (48.2 Ohm/km)	11 pF/ft (36 pF/m)	120 Ohm	78%	2.7 Amps per Conductor at 25ºC

Nom. Outer Shield DCR	2.6 Ohm/1000ft (8.5 Ohm/km)

High Frequency (Nominal/Typical)

Element	Frequency [MHz]	Nom. Insertion Loss (Attenuation)
Pair(s)	1	0.5 dB/100ft

Voltage

UL Voltage Rating
300 V (CM, PLTC)

Mechanical Characteristics

Temperature

UL Temperature	Operating
60°C	-40°C to +60°C

Table Notes	-40C

Bend Radius

Stationary Min.	Installation Min.
8.7 in (220 mm)	8.7 in

Max. Pull Tension	200 lbs (91 kg)
